Goose Down Filling Machine

FOB Price:	11.00 - 12.00 USD/Set
Supply Ability:	11 Set/Sets per Month
Shipping:	50 days
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Hank Reeling Machine

Price:

Min. Order:
Self-Tighted Spin Pack

Price:

Min. Order:
Textile Machine Bearing Texz205

Price:1.50 USD/Piece

Min. Order:1 Piece

Product Details

Place of Origin:	Shandong in China
Packaging Details:	MDF board

Specifications

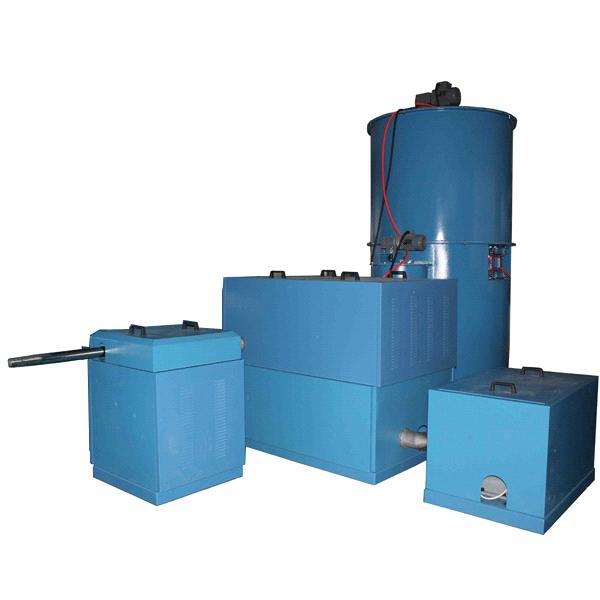

Goose down filling machine

Specification:

· Item no.: QL002-AF

· Layout dimension: 6000*2500*3600mm

· Equipment: Raw material feeding device with hot blowing system, Raw material storage, Evening device, Transporter, Weighing scale, Filling device

· Voltage: 380v 50Hz 3phase (difference can be ordered)

· Power: 9.5kw

· PLC: Siemens

· Material: Down, feather

· Hopper capacity: 10-15kg

· Air pressure: 0.6-0.8Mpa

· Capacity: Min.3-4pcs/min for pillow/ 3-4sections/min for comforter

· Operator: 1 person

· Weight: Max. 3 ton

Description:

· The developed down and feather filling machine has been developed according to our clients requirement about the capacity.

· It can be used for pillow, comforter and jackets; the material can be down and feather regular standard.

· The whole line is controlled by PCL control system that can be handled by only 1 operator.

· It is assembled with a raw material feeding device with hot blowing system to warm and dry the material. Raw material storage, Evening device, Transporter, Weighing scale, Filling device

· There are 2 sections in the raw material to keep the material and feed to the next program evenly by the necessary quantity that needed in the evening device by a laser sensor.

· The whole process is adjusted by vacuum system, so that cut down the high pressure and remain a clean working shop.

· The developed down and feather filling machine can be handled for both pillow and comforter with a changeable vacuum filling device.

· There are 3 to 4 times of weighing process can be finished in a minute.
