Hebei Feixiang Roll Forming Machinery Co., Ltd.
China Manufacturer with main products: Roll Forming Machine, Rollformingmachine, Machine, Roll Fomring |
Related products from verified members
Specifications
. Main Parameters:
1. automatic, hydraulic, inner tight
2. loading capacity: 8000kg
3. hydraulic power: 3kw
4. diameter of oil cylinder: 120mm
5. working pressure: 10Mpa
6. max diameter of coil: 2200mm
7.max width of coil: 500mm

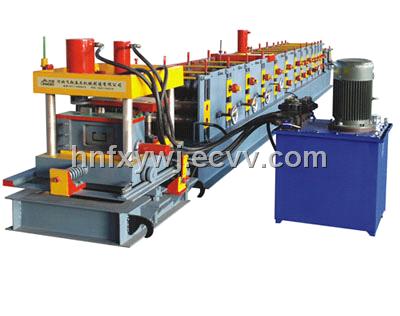

2) main forming machine
a. material of shaft: 45# steel adjustable treatment
out diameter: Φ80mm
b. material of roller: GCr15, quenched treatment HRC58-60°
c. number of levelling rollers: 5
d. number of forming rollers: 12 pairs of main rollers, 2 pairs of feeding rollers, 6 pairs of side rollers.
e. main frame: 350H steel
thickness of medium plate: 20mm
f. transportation system: chain transportation.
thickness of chain: 1.5 inch
sprocket: 15 teeth
g. main motor power: 15kw, 7# cycloidal-pin wheel speed reducer
h. forming speed: 5-12m/min
i. punching: according to drawing. fully adjustable back and front, left and right
j. dimension: 17.5*1.2*1.5m
a. material of shaft: 45# steel adjustable treatment
out diameter: Φ80mm
b. material of roller: GCr15, quenched treatment HRC58-60°
c. number of levelling rollers: 5
d. number of forming rollers: 12 pairs of main rollers, 2 pairs of feeding rollers, 6 pairs of side rollers.
e. main frame: 350H steel
thickness of medium plate: 20mm
f. transportation system: chain transportation.
thickness of chain: 1.5 inch
sprocket: 15 teeth
g. main motor power: 15kw, 7# cycloidal-pin wheel speed reducer
h. forming speed: 5-12m/min
i. punching: according to drawing. fully adjustable back and front, left and right
j. dimension: 17.5*1.2*1.5m
3.Simple Product Stand
1. welded by 60*40mm squre pipe, adjustable up and down
2. with pully on the frame
3. dimension: 1.5*0.9*0.6m
1. welded by 60*40mm squre pipe, adjustable up and down
2. with pully on the frame
3. dimension: 1.5*0.9*0.6m
