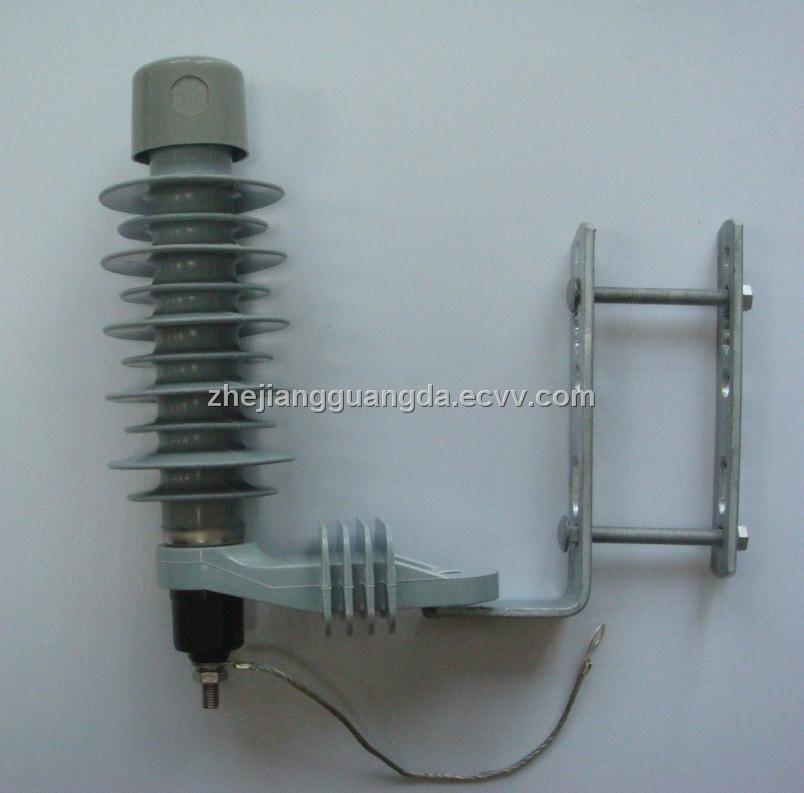

High Voltage Polymer Lightning Surge Arrester (HY10W)
| FOB Price: | 1.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Month |
| Shipping: | Based on client's mind |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Based on client's mind |
Specifications
Detailed Product Description
Metal-oxide surge arrester(Lightning arrster, polymer surge arrster)
Technical Performance
The technical performance of metal-oxide surge arrester is accord with IEC60099-4 and IEEE(ANSI)C62.11. The product certification through KEMA Nederland B.V. T&D Testing Services.
Structural Design
The module core design was developing in the early 80s and has over 15 years service experience, with the housing material changing in the early 90s.
The modular single column polymer housing metal-oxide surge arrester design is available up to 220kV systems.
The essential feature of the internal patented construction is the permanent homogenous resin and fiberglass bond over the complete insulating service of the metal-oxide varistor, the arrester module has an inherently high mechanical strength and provides a uniform dielectric at the insulating surface of the metal-oxide varistor.
Advantage (CANTOR BRAND)
- Low residual voltage
- Long protection distance
- High energy input capacity
- Stable U-I characteristics even after multiple strokes
- Proof against ageing
- Explosion and shatter-resistant design
- Pollution resistant and UV-stable
- Housing resistant to rough handling
- Maintenance free
- Stable against shock and vibration
- High mechanical resistance
- Long protection distance
- High energy input capacity
- Stable U-I characteristics even after multiple strokes
- Proof against ageing
- Explosion and shatter-resistant design
- Pollution resistant and UV-stable
- Housing resistant to rough handling
- Maintenance free
- Stable against shock and vibration
- High mechanical resistance
Main Technical Para meter of Polymer Housing Metal-oxide Surge Arrester
(YH10W-21kV E3)
1. Rated Voltage (Ur): 21Kv
2. Nominal discharge current (In): 10kA
3. Maximum continuous operating voltage (Uc): 17kV
4. Housing insulation withstand
-Lightning impulse : 120kV
-Power frequency (wet): 60 kV
5. Residual voltage at
-Lightning impulse 8/20us: 60 kV
-Steep current impulse 1/10 us: 69 kV
-Switching impulse 30/60 us: 51 kV
-Switching surge(Peak current): 500A
6. High current impulse withstand value (4/10us): 100kA
7. Total creepage distance (Minimum): 32mm/kV
| Type |
Rated Voltage KV(rms) |
MCOV KV(rms) |
Current impulse Residual Voltage |
2ms rectangular current impusle withstand KV(crest) |
4/10μs Hight current impulse withstand KV(crest) |
||
|
1/4 μs Lighting current impulse KV(crest) |
8/20 μs Lighting current impulse KV(crest) |
30/60μs Switching current impulse KV(crest) |
|||||
| HY10W-24 | 24 | 19.5 | 62 | 72 | 62 | 250 | 100 |
| HY5W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 150 | 65 |
| HY5W-6 | 6 | 5.1 | 22.6 | 18 | 10.8 | 150 | 65 |
| HY5W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 150 | 65 |
| HY5W-10 | 10 | 8.4 | 36 | 30 | 23 | 150 | 65 |
| HY5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 |
| HY5W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 150 | 65 |
| HY5W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 150 | 65 |
| HY5W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 150 | 65 |
| HY5W-21 | 21 | 17 | 71.8 | 63 | 54.2 | 150 | 65 |
| HY5W-24 | 24 | 19.5 | 62 | 72 | 62 | 150 | 65 |
| HY5W-27 | 27 | 22 | 92 | 81 | 69.8 | 150 | 65 |
| HY5W-30 | 30 | 24.4 | 102 | 90 | 79 | 150 | 65 |
| HY5W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 150 | 65 |
| HY5W-36 | 36 | 29 | 123 | 108 | 92.4 | 150 | 65 |
| HY10W-3 | 3 | 2.55 | 11.3 | 9 | 8.9 | 250 | 100 |
| HY10W-6 | 6 | 5.1 | 22.6 | 18 | 10.8 | 250 | 100 |
| HY10W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 250 | 100 |
| HY10W-10 | 10 | 8.4 | 36 | 30 | 23 | 250 | 100 |
| HY10W-11 | 11 | 9.4 | 40 | 33 | 30 | 250 | 100 |
| HY10W-12 | 12 | 10.2 | 42.2 | 36 | 27 | 250 | 100 |
| HY10W-15 | 15 | 12.7 | 51 | 45 | 38.5 | 250 | 100 |
| HY10W-18 | 18 | 15.3 | 61.5 | 54 | 46.2 | 250 | 100 |
| HY10W-21 | 21 | 17 | 71.8 | 63 | 54.2 | 250 | 100 |
| HY10W-24 | 24 | 19.5 | 62 | 72 | 62 | 250 | 100 |
| HY10W-27 | 27 | 22 | 92 | 81 | 69.8 | 250 | 100 |
| HY10W-30 | 30 | 24.4 | 102 | 90 | 79 | 250 | 100 |
| HY10W-33 | 33 | 27.5 | 112 | 99 | 86.7 | 250 | 100 |
| HY10W-36 | 36 | 29 | 123 | 108 | 92.4 | 250 | 100 |
