Zhejiang Guangda Electric Co., Ltd
China Manufacturer with main products: Lighting Arrester, Insulator, Cutout Fuse, Isolating Switch, Vacuum Circuit Breaker, Current Limiting Fuse, Load Switch, over Voltage... |

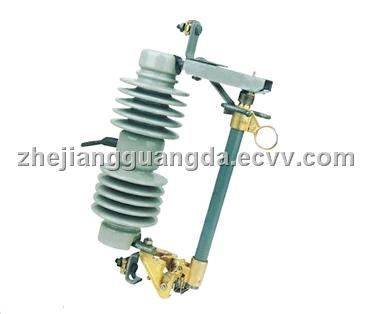

High Voltage Cutout fuse
| FOB Price: | 1.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Month |
| Shipping: | Based on clients' mind |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Based on clients' mind |
Specifications
fuse cutout
Drop out fuse and pull loads falling type fuse protection for outdoor HV electrical appliances, installed in the high-voltage side of distribution transformer or distribution lines branch trunk road,used as a transformer and line short-circuit,overload, and points.Drop out fuse holder and fuse from the insulating tube 2 parts. static contact bracket installed in the insulation at both ends,moving contact is installed on both ends of fuse tube, fuse tube from the inner arc tube and the outer phenolic aldehyde paper tube or epoxy glass cloth in to the pipeline. pull load drop fuse increase of auxiliary contact and interrupter over for the points combined load current.
| Type |
Rated voltage (KV) |
Operating Voltage (KV) |
Rated current (A) |
Breaking current(KA) |
Power frequency withstand voltage(wet) KV |
Power frequency withstand voltage(dry) KV |
Impulse voltage KV |
Leakage distance (MM) |
| RW3-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 230 |
| RW3-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 230 |
| HRW3-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 360 |
| HRW3-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 360 |
| RW7-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 260 |
| RW7-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 260 |
| HRW7-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 340 |
| HRW7-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 340 |
| RW10-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 260 |
| RW10-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 260 |
| HRW10-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 340 |
| HRW10-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 340 |
| RW11-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 260 |
| RW11-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 260 |
| HRW11-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 340 |
| HRW11-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 340 |
| RW12-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 300 |
| RW12-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 300 |
| HRW12-10/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 380 |
| HRW12-10/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 380 |
| PRWG1-10/100 | 10 | 11.5 | 100 | 6.3 | 50 | 35 | 85 | 315 |
| PRWG1-10/200 | 10 | 11.5 | 200 | 8.0 | 50 | 35 | 85 | 315 |
| HPRWG1-10/100 | 10 | 11.5 | 100 | 6.3 | 50 | 35 | 85 | 380 |
| HPRWG1-10/200 | 10 | 11.5 | 200 | 8.0 | 50 | 35 | 85 | 380 |
| RW10-10F/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 260 |
| RW10-10F/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 260 |
| HRW10-10F/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 340 |
| HRW10-10F/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 340 |
| RW11-10F/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 260 |
| RW11-10F/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 260 |
| HRW11-10F/100 | 10 | 11.5 | 100 | 6.3 | 42 | 30 | 75 | 340 |
| HRW11-10F/200 | 10 | 11.5 | 200 | 8.0 | 42 | 30 | 75 | 340 |
| PRWG1-10F/100 | 10 | 11.5 | 100 | 6.3 | 50 | 35 | 85 | 315 |
| PRWG1-10F/200 | 10 | 11.5 | 200 | 8.0 | 50 | 35 | 85 | 315 |
| HPRWG1-10F/100 | 10 | 11.5 | 100 | 6.3 | 50 | 35 | 85 | 380 |
| HPRWG1-10F/200 | 10 | 11.5 | 200 | 8.0 | 50 | 35 | 85 | 380 |
| PRWG2-35/100 | 35 | 40.5 | 100 | 5.0 | 95 | 86 | 185 | 935 |
| PRWG2-35/200 | 35 | 40.5 | 200 | 8.0 | 95 | 86 | 185 | 935 |
| HPRWG2-35/100 | 35 | 40.5 | 100 | 5.0 | 95 | 86 | 185 | 1340 |
| HPRWG2-35/200 | 35 | 40.5 | 200 | 8.0 | 95 | 86 | 185 | 1340 |
| RW5-35/100 | 35 | 40.5 | 100 | 5.0 | 95 | 86 | 185 | 746 |
| RW5-35/200 | 35 | 40.5 | 200 | 8.0 | 95 | 86 | 185 | 746 |
| HRW5-35/100 | 35 | 40.5 | 100 | 5.0 | 95 | 86 | 185 | 1080 |
| HRW5-35/200 | 35 | 40.5 | 200 | 8.0 | 95 | 86 | 185 | 1080 |
| Type |
Rated voltage KV |
Rated current A |
Breaking current A |
Impulse voltage BIL |
Power frequency withstand voltage KV |
Leakage distance(MM) |
Weight(KG) | Dimensions(CM) |
| GD-1 | 12 | 100 | 10000 | 110 | 40 | 245 | 7 | 41*39*11.5 |
| GD-1 | 12 | 200 | 12000 | 110 | 40 | 245 | 7.5 | |
| GD-2 | 15 | 100 | 10000 | 125 | 45 | 330 | 9 | 51*34*12.5 |
| GD-2 | 15 | 200 | 12000 | 125 | 45 | 330 | 9.5 | |
| GD-3 | 24 | 100 | 8000 | 150 | 65 | 420 | 11.5 | 52*38*13 |
| GD-3 | 24 | 200 | 10000 | 150 | 65 | 420 | 12 | |
| GD-4 | 27 | 100 | 8000 | 150 | 65 | 450 | 11.5 | 52*38*13 |
| GD-4 | 27 | 200 | 10000 | 150 | 65 | 450 | 12 | |
| GD-5 | 33 | 100 | 10000 | 170 | 70 | 660 | 14.5 | 66*37*14 |
| GD-5 | 33 | 200 | 12000 | 170 | 70 | 660 | 15 | |
| GD-6 | 33 | 100 | 10000 | 170 | 70 | 660 | 7 | 61*42*13 |
| GD-6 | 33 | 200 | 12000 | 170 | 70 | 660 | 7.5 | |
| GD-7 | 24 | 100 | 8000 | 150 | 65 | 370 | 11 | 52*38*10.5 |
| GD-7 | 24 | 200 | 10000 | 150 | 65 | 370 | 11.5 | |
| GD-8 | 33 | 100 | 10000 | 170 | 70 | 700 | 15.5 | 57*38*14.5 |
| GD-8 | 33 | 200 | 12000 | 170 | 71 | 700 | 16 | |
| GD-9 | 11 | 100 | 6000 | 110 | 42 | 340 | 7 | 47.5*27.5*11.5 |
| GD-9 | 11 | 200 | 8000 | 110 | 42 | 340 | 7.5 | |
| GD-10 | 11 | 100 | 6000 | 110 | 42 | 340 | 5 | 47.5*27.5*11.5 |
| GD-10 | 11 | 200 | 8000 | 110 | 42 | 340 | 5.5 | |
| GD-11 | 33 | 100 | 8000 | 10 | 70 | 780 | 23 | 69*28*18 |
| GD-11 | 33 | 200 | 10000 | 170 | 70 | 780 | 23 |
