Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	One month after receiving deposit

Specifications

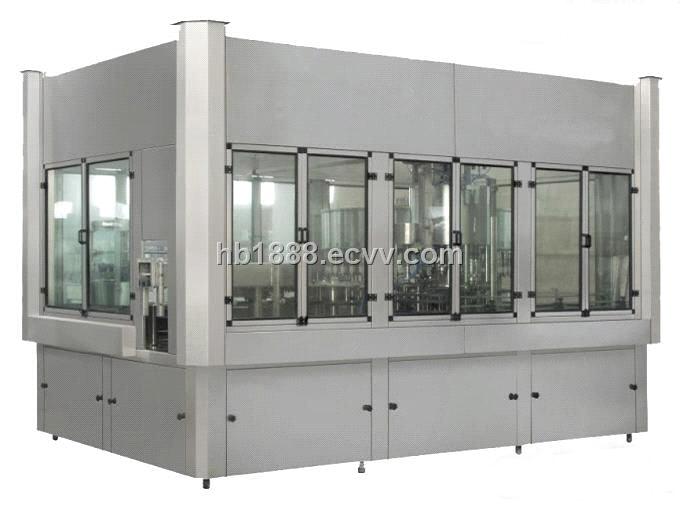

CGF Series Washing-filling-capping 3-in-1 Unit

Usage

The series equipment is used in filling pure water, and glass mineral water white wine, and other drink which does not contain any gas in PET bottles. On one machine, it can carry out washing, filling capping. The machine adopts filling in normal temperature and normal pressure. The special filling valve makes the filling speed fast and the filling liquid level control correct. The machine adopts frequency control and PLC control. The operation and maintenance are convenient. It is suitable for thinner PET bottle.

Characteristics:

1. The machine can carry out the three functions of bottle washing, filling, capping.

2. The advanced programmed controller (PLC) is adopted to control the machine running automatically.

3. The bottle entry section adopts air conveyor system.

4. The bottle exit section adopts belt conveyor system, which can adjust the speed.

5. The machine are of high quality, the key spare-parts are made by famous producer.

Main Technical Specification

Model	CGF16/12/6	CGF18/18/6	CGF24/24/8	CGF32/32/12	CGF40/40/12	CGF48/48/12
Production Capacity(500ml(B/h))	4000	6000	10000	14000	17000	20000
Suitable Bottle Height(mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Bottle Diameter	Φ50-Φ110
Rinsing Pressure(Mpa)	0.2-0.3
Filling Model	By Gravity
Installed Capacity(L)	3.13	3.84	3.84	5.6	6.3	7.3
Filling Temperature	Normal temperature
Overall Size(mm)	240016702350	247019702350	286521702350	370025702350	380029502400	450034002400
Total Weigh	2500	3000	4000	5000	6000	7000
