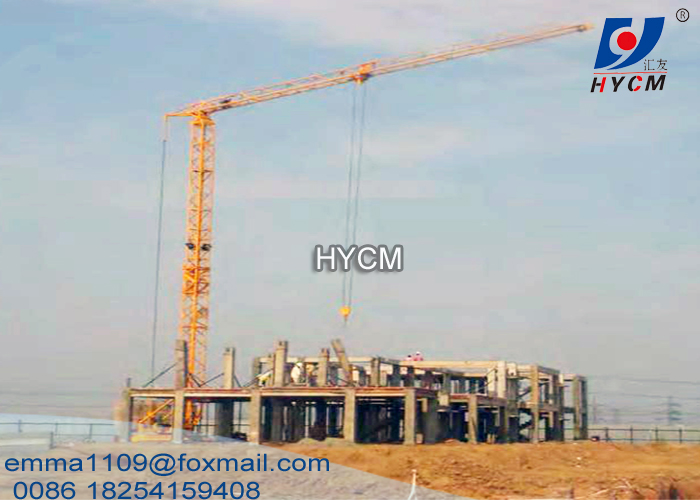

QTK20 Fast Self Erecting Tower Crane 2t Specification with 25m Jib Length
| Supply Ability: | 100 Set(s) per Month |
|---|---|
| Shipping: | FOB QINGDAO BY SEAR |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, 30% deposit and 70% before delievery |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | 1*40'HC containers per set QTK20 self erecting tower crane |
Quick Details
- Feature: Tower Crane
- Certification: ISO,CE,GOST
- Brand Name: HYCM, AVITT
- Max. Lifting Height: 24.5M
- Max. Lifting Load: 2T
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 YEAR
- Model Number: QTK20 TOWER CRANE
- Span: 24.5M
- Rated Lifting Moment: 250KN.M
- Rated Loading Capacity: 2T
- Application: Building Construction
- Color: Yellow, orange, green or according to client
- Type: Outside climbing of building
- Power supply: 380V/50Hz, 415V/50Hz, 220V/50Hz or according to clients need
- Foundation type: outrigger
Specifications
QTK20 Fast Self Erecting Tower Crane 2t Specification with 25m Jib Length
Specifications
| Model | QTK20 Tower Crane |
| Type | Fast self-erecting |
| Rated Lifting Moment(KN.M) | 200 |
| Rated Loading Capacity(T) | 2 |
| Max. Lifting Load(T) | 2 |
| Tip Load(T) | 0.82 |
| Free standing height(M) | 23 |
| Span(M) | 24.75 |
| Working range(M) | 2.4 to 24.5 |
| Slewing speed(r/min) | 0.2/0.4/0.6 |
| Trolley peed(m/min) | 25 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity(KW) | 15.4 |
| Hoisting speed(m/min) | (a=2)40/20; (a=4)20/10 |
Main Introduction
1 Hoisting Mechanism
Three-gear speed modulation by electrical motor or frequency conversion, giant winch.
2 Rotation Mechanism
Speed modulation with frequency conversion, stable break, accurate position, outstanding on performance and operation all around the world.
3 Luffing Mechanism
Speed modulation with frequency conversion, less concussion, stable operation.
4 Control System
PLC control, auto diagnosis on electric malfunction, corresponding alarm on light and sound, key components adopting international top brand product.
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
More products available:
Tower Cranes
---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.Load from 4-25t.
---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.Load from 4-32t.
---D Luffing Tower Crane: Working jib from 25-60m and max.Load from 3-25t.
---QD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.
SS Building Material Lift / Hoist
------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.
ZLP Suspended Platform
SJY Scissor Lift
