>Products Catalog > PCB Drilling and Milling Machine > PCB Drilling Milling Machine JCUT-3030/4040/5060/6090

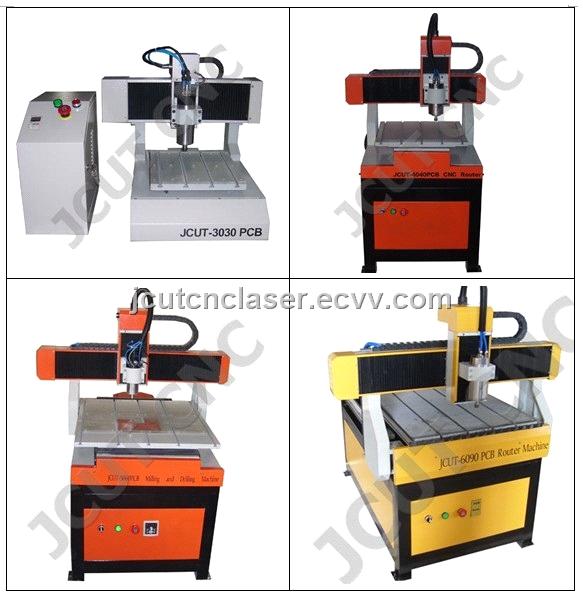

PCB Drilling Milling Machine JCUT-3030/4040/5060/6090
| Supply Ability: | 50 Set/Sets per Month |
|---|---|
| Shipping: | by sea |
| Payment Terms: | T/T, Paypal, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden trunk for export |
Specifications
PCB drilling milling machine JCUT-3030/4040/5060/6090
Application: CNC PCB Milling Machine pcb drilling machine pcb milling machine pcb cnc router pcb router machine pcb cnc engraver pcb engraver machine pcb engraving machine
|
JCUT Model |

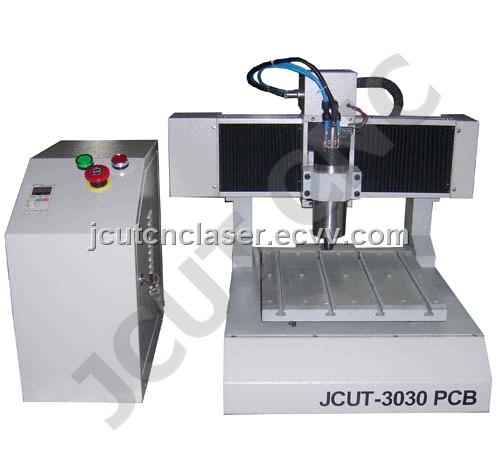

3030
|

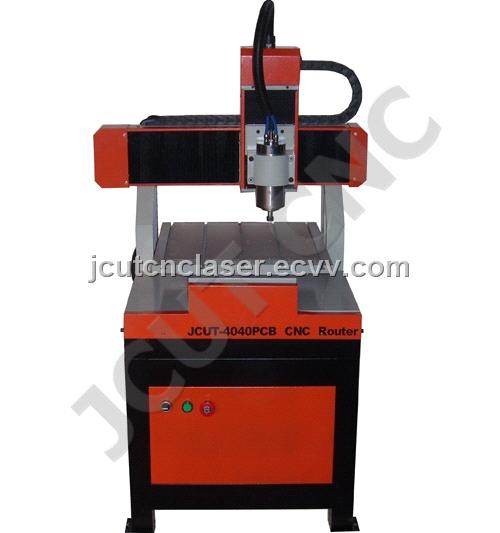

4040
|
5060
|

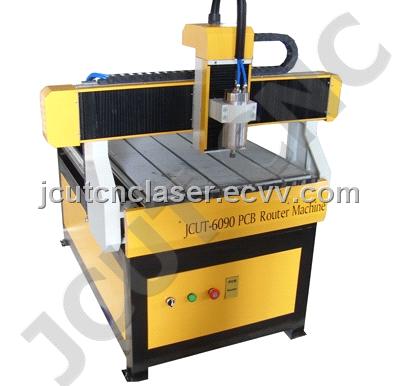

6090
|
|
Machine body |
whole cast aluminum
|
Whole cast iron |
||
|
Working size |
300*300mm
|
400*400mm
|
500*600mm
|
600*900mm
|
|
Spindle power |
800W variable speed, water-cooled
|
1.5KW variable speed, water-cooled
|
||
|
Guideway |
circular guideway
|
Linear guide rail
|
||
|
Drive motor |
Stepper
|
|||
|
Drive mode |
Ball screw |
|||
|
Design software |
Protel
|
|||
|
Gross weight |
90kg
|
180kg
|
220kg
|
300kg
|
|
Packing size |
750*750*750mm
|
900*900*1600mm
|
1200*1200*1600mm
|
1200 x 1500 x 1500mm
|
Max. speed: 8000mm/min
Working speed: 0-4000mm/min
Working accuracy: 6-8mil
Least line diameter and least line spacing: 6-8mil
Drilling depth: 0.02 ~ 3mm
Drilling diameter: 0.4 ~ 3.175mm
Drilling holes: 40-100/min
Repeat Accuracy: 0.025mm
The least error of Data control drill less than 1mil (0.015mm)
Operation system: WIN2000/XP /VISTA
Means of communication: PCI or RS232
Function Request: Protel PCB document can be directly put in. (gerber)
Spindle speed: 24000rpm
Power supply: AC210-240V
