Teenking CNC Machinery Co., Ltd.
China Manufacturer with main products: Water-jet, Waterjet Cutter, Waterjet Cutting Machine, Water Cutter, waterjet cutting machine |

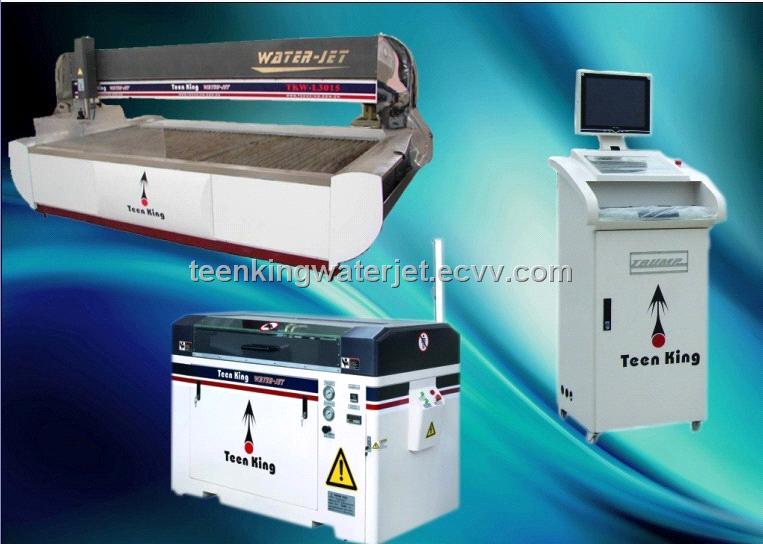

TKW420 Trump50-L3015 Waterjet Cutting
| FOB Price: | 10,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 30working days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | export standard package |
Specifications
TKW420-TRUMP50-L3015 Waterjet cutting machine,cnc waterjet,cutting machine.water jet,high pressure waterjet.waterjet
tech.details:
TKW Trump50 –L series(L=bridge type)
The max travel of X axis: 3050 mm,
The max travel of Y axis: 1550 mm
The max travel of Z axis: 200 mm(8”)
The max range of process: available cutting area is 3000X1500mm
All stainless steel covers new : CNC cutting platform will be complete covered by Stainless steel.
The max travel of Z axis: 200 mm(8”)
The max range of process: available cutting area is 3000X1500mm
All stainless steel covers new : CNC cutting platform will be complete covered by Stainless steel.
|
Drive mode / pump style:
|
Hydraulic drive / intensifier
|
|
Max pressure
|
420MPa (60,000psi)
|
|
Stable work pressure range
|
25~380 MPa (3500~55,000 psi)
|
|
Nominal Power Rate
|
37kW(50hp)or 30kw(40hp)
|
|
Brand of power motor
|
SIEMENS oil pump motor 37kW (50 hp)
|
|
Soft starter
|
SIEMENS Star-delta starter
|
|
Oil-/ Water Heat Exchanger
|
High efficiency plate heat exchanger
|
|
Max orifice size:
|
0.36mm/0.014”
|
|
Max Water Flow Rate
|
3.7L/min
|
|
Dual pressure control system new
|
low/high pressure(range 25~380MPa) switched by controller or program
|
|
Nominative Motor Current
|
380V/50Hz 63 A
|
|
Max. Circuit Breaker at 380V/50Hz
|
80 A
|
|
Control System / Language
|
SIEMENS PLC control / English
|
|
Min. Inlet Water Pressure requirement
|
2.5 bar
|
|
Inlet water pressure supply
|
6~8 bar(pressured by pump)
|
|
Inlet water storage capacity
|
2.0 L
|
|
Max. Nominal Stroke Rate
|
150 times/min
|
|
H.P Water Attenuator Volume
|
1.02 L
|
|
Info display
|
Inlet water pressure, oil pressure, high pressure, oil temperature
|
|
Safety protection
|
Oil pressure & high pressure protection
|
|
Inlet water Filter assembly
|
0.1μm after process and resin softened
|
