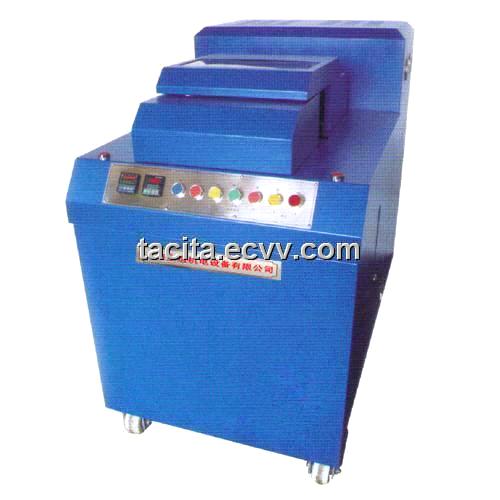

SZ-158 hydraulic Cold welding machine / 8mm copper rod welding machine

Supply Ability:	2,000 Set/Sets per Month
Shipping:	ready to ship,being in stock
Payment Terms:	L/C, T/T, Paypal, Western Union

Inquiry Now

Related products from verified members

china high efficiency copper busbar processing ...

Price:5,000.00-8,000.00 USD/Set

Min. Order:1 Set
Arc-Shortening Rod, Arc Extinguishing Rod, Arc ...

Price:1.50-2.00 USD/Piece

Min. Order:100 Pieces
Copper Busbar Aluminum Leveling Machines CNC

Price:6500.00 USD/Set

Min. Order:1 Set
Tungsten Copper Alloy Bars/Sheets/Plates

Price:

Min. Order:1 Kilogram
Tungsten Copper Bar WCu Bar Tungsten Products

Price:1.00 USD/Piece

Min. Order:1 Piece
Titanium Clad Copper Rod

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	wooden case

Specifications

Model	SZ-158 hydraulic pressure cold welding machine
Applications	Widely used in the cold welding for the wire of copper, aluminum, gold, silver, nickel, Platinum, zinc, Tin, niobium tantalum and other non-ferrous metals
Range of wire	Copper: ф3.00-ф10.00mm Aluminium: ф3.00-ф15.00mm
Type of the machine	Precise die-casting
Motor power	4KW
Oil temperature	≤75°
Return-Oil pressure	1.5 Mpa
Rated Voltage	380V/50HZ
Working pressure	≤4.5Mpa
Dimensions	1230х700х1130mm (LWH)
Weight	830kg

Introduction:

1.No need of heat or electricity and some form of flux to make the joins of wire.

2.It is possible to weld two different diameter wire with different material together.
3. Automatically operated. Simple and convenient. Solid rod can also be welded.

4.It is electric/hydraulic powered machines capable of welding large round wire and strip materials. Caster mounting provides ease of movement in work area.
5. Widely used in the cold welding for the wire of copper, aluminum, gold, silver, nickel, and other non-ferrous metal wire/rod.

Please add my skype if any interest: lanalana0562.. Thank you!
