Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	Pallet

Specifications

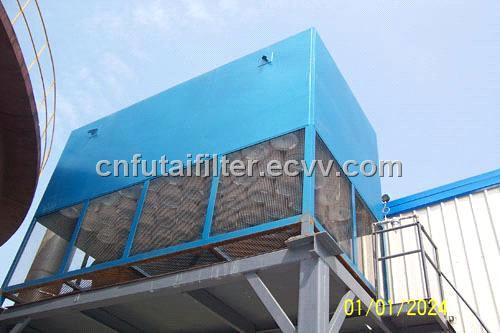

MSF Self-Clean Air Inlet Filters

1. The equipment is controlled by the computer to make the air filtering components self-clean. The equipment runs normally without any effect to the filtering efficiency.

2. Three self-clean modules: (1) timing (2) fixing (3) hand-made.

3. High efficiency in dust-filtering even in the humble place.

4. Small lost in resistance. The resistance lost of small filters is less than 250Pa and large filters 600Pa (initializing state) with the device displaying.

5. The large filter is assembled by piling up, which asks for little space.

6. Installed conveniently. The outlet pipes can be connected at will without the

effect of installing place.

7. Low power consumption, only 100-700W.

8. Air-compressed volume is 0.1-0.4cbm/min (inhaling state) and the pressure is 0.6-0.7MPa.

9. Light weight, just 2/3 of the cloth-bag oil style.

10. Long using components, under the common circumstance,

the components need to be replaced per 2 years.

11. As to specific request, our company can design non-standard products to meet needs.

Specification
NO.	1	2	3	4	5	6	7	8	9
specification Project	Air volume m3/min	Initial filtering resistance(Pa)	Efficiency μm%	Power(W)	Air consumption m3/min	Specification(m)			weight(kg)
specification Project	Air volume m3/min	Initial filtering resistance(Pa)	Efficiency μm%	Power(W)	Air consumption m3/min	Length	wildth	height	weight(kg)
MFS6	40 m3/min		≥1/99.6 ≥2/99.8 ≥3/99.9 ≥4/100	100		1.6	1.2	2.9	800
MFS12	90 m3/min	< 250		150	0.1	2.1	1.6	3	1000
MFS15	120 m3/min			150		2.5	1.6	3.4	1200
MFS20	160 m3/min			200		2.7	2.1	3.6	1500
MFS30	250 m3/min			200		3.2	2.7	4.1	2300
MFS50	450 m3/min			300	0.2	5	2.7	4.5	4000
MFS60	540 m3/min	< 350		300		5	3	4.5	4800
MFS100	1000 m3/min			450		6.6	2.2	5.9	7000
MFS300	3000 m3/min			450	0.3	10	4.4	6.65	14000
MFS500	5000 m3/min			700		10	6.6	7.25	21000
MFS600	6000 m3/min			700		10.8	6.6	7.45	23000
MFS700	7000 m3/min	< 650		700		10.8	8.8	7.65	27000
MFS800	8000 m3/min			700	0.4	11.6	8.8	7.85	29000
MFS1000	10000 m3/min			700		12	8.8	8.25	32000
