DICKY MACHINERY CO. LTD.
China Manufacturer with main products: Pad Printing Machine, Screen Printing Machine, UV |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

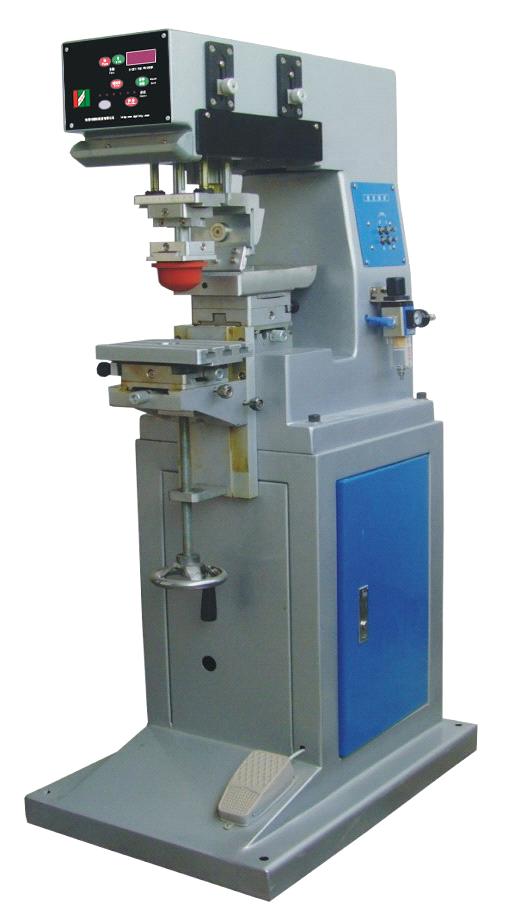

Sealed Ink Cup Pad Printer with the latest nano-technology oil cup made of tungsten steel cutting ring, the
surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction
that this section of the machine than the traditional oil pan machines more environmentally friendly and more fuel
efficient.
Color printing machine is electronic, plastics, toys and other products for monochrome printing machinery, such
as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc., for a variety of printed
materials For example: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the
irregular surface of the product arc printing.
Simple operation, easy maintenance and repair, lower prices for most used by customers
Featre:
·Advanced computerized system control
·pneumatically driven adopt from FESTO, can adjust the movement speed of each part
·Built-in LED digital counter
·Emergency stop system to ensure the safety of operator
·Light-weight, strong aluminum cast machine frame
·Ink trays, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
·The ink cup promote by cylinder ,can be slide more smoothly
Specifications
PM1-100T
Print Color: 1 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 125mm
Ink cup stroke distance: 100mm
Standard Plate size: 100 × 200mm (4 '× 8')
Ink Cup Diameter: 60 (optional), 90mm
Work Table size: 200 × 125mm
Maximum speed: 2100 Pcs / Hr
Power: 110V/220V 50Hz
Power: 35W
Pressure: 6 Bar
Air Consumption: 56 Liter / Min
Dimensions: 810 × 450 × 1370mm
Weight: 94Kg
PM1-150T
Print Color: 1 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 175mm
Ink cup stroke distance: 150mm
Standard Plate size: 100 × 250mm (4 '× 10')
Ink Cup Diameter: 60 (optional), 90mm
Work Table size: 250 × 125mm
Maximum speed: 1800 Pcs / Hr
Power: 110V/220V 50Hz
Power: 35W
Pressure: 6 Bar
Air Consumption: 58 Liter / Min
Dimensions: 1300 × 460 × 1400mm
Weight: 113Kg
PM1-200T
Print Color: 1 color (can be process)
Work station: 1Pcs
Cylinder head up and down distance: 75mm
Cylinder stroke distance: 225mm
Ink cup stroke distance: 200mm
Standard Plate size: 100 × 300mm (4 '× 12')
Ink Cup Diameter: 60 (optional), 90mm
Work Table size: 300 × 125mm
Maximum speed: 1600 Pcs / Hr
Power: 110V/220V 50Hz
Power: 35W
Pressure: 6 Bar
Air Consumption: 58 Liter / Min
Dimensions: 1300 × 460 × 1400mm
Weight: 120Kg
