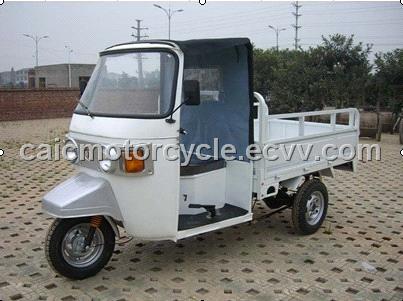

Cargo Tricycle with CNG System

Engine type 1 cylinder,4 stroke,watercooled
Model 162MK
Displacement 173.6ml
Bore*Stroke 62*57.5mm
Compression ratio 10.7:1
Rated power & corresponding 9.8Kw/8000±500r/min
Max.torque & corresponding 13.0N.m/6500±500r/min
Min. idle speed 1400±100r/min
ignition type C.D.I
Lubrication method  Pressing Splashing
Starting method Elecrical Starting
Clutch method Manual, wet and multiple disc
Gearshift 5 Speeds

Dimensions (mm) 2950*1250*1750
Wheel Base (mm) 1860
Wheel Track(Rear) (mm) 1130
Net Weight (kg) 390
Maximum Load (kg) 300
Ground Clearance(mm) 160
Transmission system  Shaft drive
Transmission  5 Forward + 1 Reverse
Brake (Front/Rear) Mechanical/Mechanical
Starting System Electric
Design Max Speed ≥60km/h
Tire (Front/Rear) 4.50-12/4.50-12
Fuel Comsuption 3.2L/100km
Battery 12V/28Ah
FuEl Tank cubage    L 11


40HQ: 36 units skd or 40 units ckd


OPTION:
CNG system
ENGINE INTO 200CC
STEERING WHEEL
SIDE PVC COVER
EXTRA TYRE
