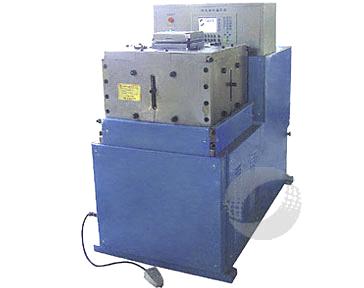

YX-18LC Square can Body Forming Machine

Inquiry Now

Related products from verified members

Cement Channel Forming Machine for Water Irriga...

Price:5,000.00-8,000.00 USD/Set

Min. Order:1 Set
Shelf Forming Machine

Price:

Min. Order:
Post forming machine

Price:1.00-2.00 USD/Set

Min. Order:1 Set
312 Ridge Cap Forming Machine

Price:15,999.00-19,999.00 USD/Set

Min. Order:1 Set
Wax Pattern Forming Machine

Price:

Min. Order:
Ridging Cap Cold Forming Machine

Price:9850.00-11580.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Jiangxi in China

Specifications

It is combined with such procedures as expanding the container cylinder into square, angel tendon pressing and upper cover paneling.etc. The material of the container body is stretched at the same time, which ensures tanks not contorted, deformed or rebound, and save manual and energy sources. (as demanded by the customers). It is mainly used in the one-off forming of the 5-gallon square container body.

2． Major Technical References:

Scope of application: big square containers of 9-20L (Require changing molds)

Maximum oil pressure: 12Mpa

Adaptive material thickness: 0.2-0.4mm

Working air Pressure: 0.3Mpa

Capacity: 15-20 cans per minute

Volume of oil tank: 130L

Power of motor: 10HP

Outline Size: 1400×720×1200mm

Applied electric source: AC380V 50HZ

overall Weight: 900kg
