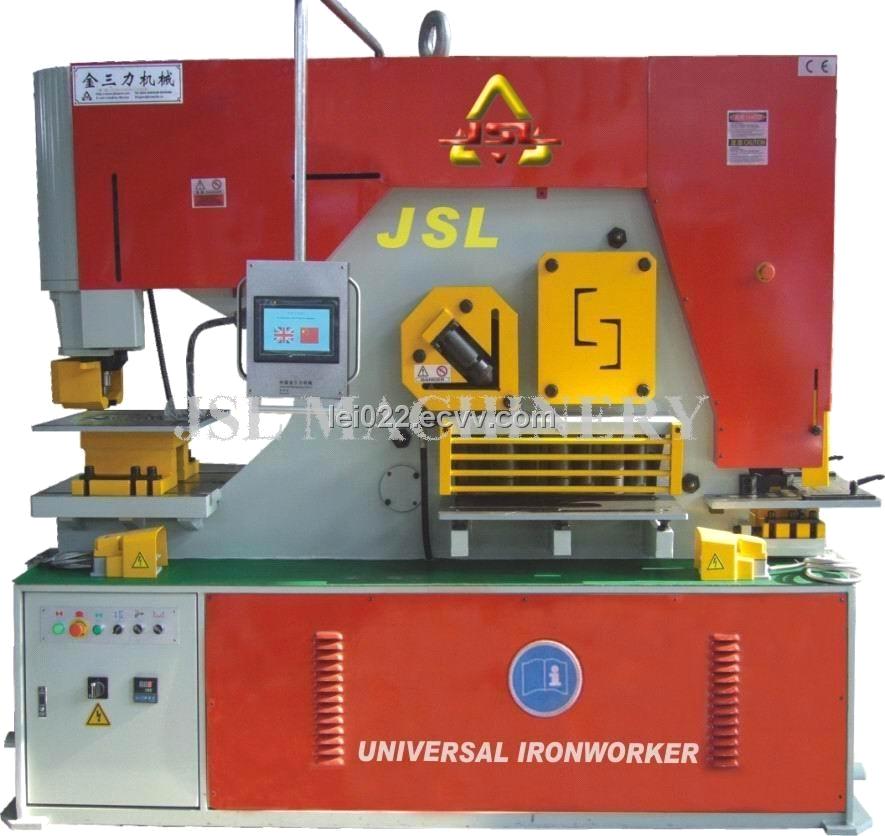

Hydraulic Ironworker Q35Y-30E/cutting machine/ notching machine

Inquiry Now

Specifications

machinesoffer2(at)gmail.com

Q35Y-30E is improved machine on the base of standard Q35Y-30.It also go along with 5 set of blades. But the profile shearing and plate shearing work position is automatic. There is automatic holding system in profile shearing and plate shearing work position- the holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency. In addition, there is temperature cooling system with machine- Through the temperature monitoring screen you can read the temperature of oil, 55 degree is our default configuration, once the machine is working, oil temperature goes higher than 55, the cooling system inside will run automatically to decrease temperature in order to protect machine. In addition, we have many patents for Ironworker machine and Our Company through the ISO9000, CE certification, SGS certification and CQC. HYDRAULIC IRONWORKER MODEL: Q35Y-30E (IW-140)

Technical Data
NO		Item	Unit	IW-140
NO		Item	Unit	Q35Y-30E
1	shearing plate	Angle of shear	°	8°
		Max.shearing thickness	mm	30
		Flat bar	(W×T) mm	355×30
		Flat bar	(W×T) mm	600×20
2	shearing bar	Round steel	mm	65
		Square bar	mm	55×55
		90°shearing of equal-angle bar	mm	180×180×16
		45°shearing of equal-angle bar	mm	80×80×10
		90°shearing of T-bar	mm	180×90×16
		I beam steel	mm	280×124×10.5
		channel steel	mm	280×86×11.5
3		Thickness	mm	10
	notching	Width	mm	90
		Depth	mm	100
4	punching hole	Max.punching thickness	mm	28
		Max.diameter of punching	mm	38
		Punching force	Ton	140
		Depth of throat	mm	600
		Max.length of cylinder stroke	mm	80
		Stroke times	times/min	8
5	Material strength		N/mm²	≤450
6	Motor power		KW	11
6	Overall dimensions (L×W×H)		mm	2680×1060×2380
7	Net. weight		KG	6800

Price Terms︰	FOB Shanghai
Payment Terms︰	TT / LC
Packing︰	Protective Film
