PVC Insulation Instrumentation Cable

FOB Price:	1.38 - 45.99 USD/Kilometer
Supply Ability:	500 Kilometer per Month
Shipping:	About 15 days
Payment Terms:	L/C, T/T(Bank Transfer), D/A, D/P

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Instrumentation cable

Price:

Min. Order:
Instrumentation Cables

Price:0.50-35.00 USD/Meter

Min. Order:300 Meter
Thermoplastic Polyurethane PUR Coiled Spiral Ca...

Price:0.15-0.35 USD/Piece

Min. Order:100 Pieces
HDMI Male to 2 HDMI Female 1 in 2 out Splitter ...

Price:3.00-5.00 USD/Piece

Min. Order:10 Pieces
Shielded & Twisted Pair Special PVC Cable f...

Price:1.00 USD/Meter

Min. Order:300 Meters

Product Details

Place of Origin:	Henan in China
Packaging Details:	Wooden Cable Drum for Export

Specifications

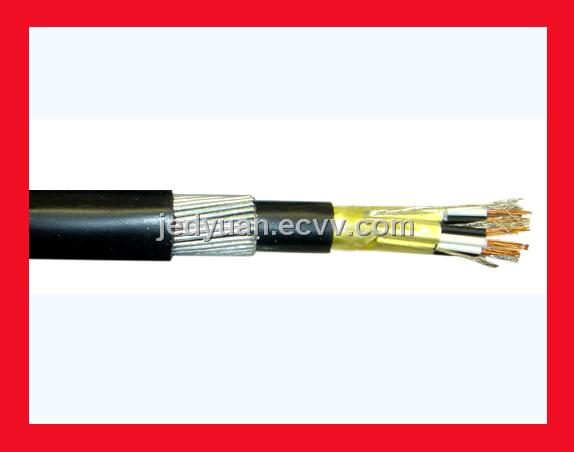

PVC Insulation Instrumentation Cable

1. Construction
Copper strands, acc. To VDE 0295, class 2 or class 5.
PE or XLPE insulation Twisted Pairs
Identification pairs: Blue, black numbered
Overall Screened with Aluminium /Polyester tape, metallic side down in contact with tinned copper drain wire 0.5mm2
PVC or LSHF Inner Sheathed
Galvanized Steel Wire Armoured
PVC or LS0H Outer Sheathed

2. Technical data
Rated voltage: 300V or 500V
Test voltage: 1000V for 300V rated 2000V for 500V rated
Temperature range 60°C or 90°C
Min. Bending radius: 6X OD
Reference standard: EN 50288-7
IEC 60332-1 Flame retardant
IEC 60332-3A Fire retardant on bunched cables (if required)
IEC 60754 Halogen free properties (only for LSHF)
IEC 61034 Low smoke emission (only for LSHF)

3. Application
This Specification covers multipair cables used in the provision of communication services and the interconnection of electrical equipment and instruments, particularly in and around process plants. These cables are generally for burial underground.
