Xiamen JYG Optoelectronic Co., Ltd.
China Manufacturer with main products: LED Lighting, LED Bulb, LED Lamp, LED Light |

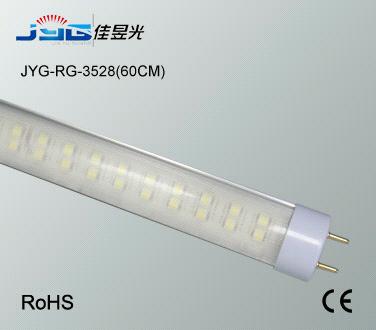

3528 SMD led tube light (CE/ROHS approved)
| Supply Ability: | 500,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-15days |
| Payment Terms: | T/T(Bank Transfer), Western Union, PayPal |
Related products from verified members
| Place of Origin: | Fujian in China |
|---|---|
| Packaging Details: | Professional box lined designdall ,products well protected |
Specifications
LED Tube Light
Light source: SMD3528
Power:9W/18W/22W/25W
Luminous flux:800LM/1600LM/2100LM
Warranty: 2 years,CE,ROHS,FCC
Led tube , led light tubes , LED Lamp led tube light , T5 led tube , T8/T10 led tube
T5/T8/T10 LED Tube Light
| Electrical / Optical Characteristics | ||||||
| Model No. | JYG-T102215 | JYG-T8215 | JYG-T81812 | JYG-T80906 | JYG-T51806M | JYG-T51812M |
| Size | T10 | T8 | T8 | T8 | T5 | T5 |
| Φ30mm*1500mm | Φ26mm*1500mm | Φ26mm*1200mm | Φ26mm*600mm | Φ15mm*1200mm | Φ15mm*600mm | |
| Input voltage | AC100-130V ,AC200-250V ,AC85-265V for choice | |||||
| Light source | 3528 SMD LED | 5050 SMD LED | ||||
| LED QTY | 336PCS | 336PCS | 276PCS | 144PCS | 60PCS | 30PCS |
| Luminous flux | ≥2000LM | ≥2000LM | ≥1500LM | ≥700Lm | ≥1400Lm | ≥700Lm |
| Warm White | ||||||
| Luminous flux | ≥2100Lm | ≥2100Lm | ≥1600Lm | ≥800Lm | ≥1500Lm | ≥800Lm |
| Cool White | ||||||
| Power | 22W | 22W | 18W | 8W/9W | 18W | 8W |
| CRI | >80% | |||||
| Power factor | >0.95 | |||||
| Color(CCT) | Warm white(3000K-4500K) Pure White (5000-6000K) Cool white (6000K-7000K) | |||||
| Beam angle | 120-180° | |||||
| Material | AL House+ Milky PC /Transparent /Stripe Cover | |||||
| Certificate | CE/ RoHS | |||||
| Life(H) | ≥50,000Hours | |||||
| Warranty | 3 Years | |||||
| Notes: Tolerance of measurement of luminous intensity ±15% | ||||||
|
Parameter
|
Symbol
|
JYG-T8-60/120/150
|
|
Working voltage
|
V
|
AC100-130V / AC200-250V or AC85-265V
|
|
Power Dissipation
|
PD
|
8W/9W/18W/22W
|
|
Electrostatic
|
ESD
|
400V
|
|
Operating Temperature
|
Topr
|
-20+50°C
|
|
Storage Temperature
|
Tstg
|
-30+60°C
|
Feature
- Directly replace traditional fluorescent lamps, No UV and IR radiation.
- Energy saving than 80%,More durable & robust ,It can light up to 10 years with 2years guarantee time
- High heat-conducting aluminum heat sink design.
- Easy operate and install.
- Life-span50,000 hours, Energy-Saving and environment-friendly, Not contain mercury or any lead, no Rf interference.
- AC Changed into DC directly, no flashing occurs, so it is good for eyes.
- Special circuit design, each LED work separately ,any individual LED failure will not cause other LEDs black out.
- Certificates: CE, ROHS.
Application
- Instead of the indoors ceiling light.
- School, Universities, hospital, hotel
- Conference ,meeting room, showroom
- Commercial complexes
- Factory ,office
- Super market
- Residential Institution buildings
Led tube , led light tubes , LED Lamp led tube light , T5 led tube , T8/T10 led tube
