Yingkou Changsheng Steel Structure Project Co., Ltd.
China Manufacturer with main products: UBM machine, Roll forming machine, K span machine, arch sheet roll forming machine, Roof panel forming machine, K span roll forming machine,... |

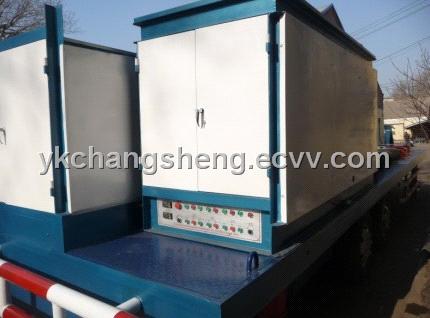

K Span Roll Forming Machine
| Supply Ability: | 20 Set/Sets per Year |
|---|---|
| Shipping: | 20 days after we receipt 30% payment |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Liaoning in China |
|---|---|
| Packaging Details: | 40 Feet container |
Specifications
MAIN TECHNICAL SPECIFICATION
Size: 10400mm * 2250mm * 2300mm
Total Weight: about 15000KG
Main Motor Power15.7KW
Total Weight: about 15000KG
Main Motor Power15.7KW
forming power is 7.5kw ;
bending power is 3.0kw;
cutting power is 3.0kw;
conical power is 2.2kw
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
PLC Type: Germany Siemens
Step of rollers: 13 steps
Feeding Width: 914mm
Effective Width: 610mm
The depth of the groove: 203mm
Thickness of the coil: 0.6-1.5mm
Operating factor of the panel: 66%
Proper span: d38m
|
Features of Saxning k-span machine
|
|
1. All the rollers are forged from the high quality structural steel and are processed intensely. The surfaces of the rollers are plated with hard chromium. The rollers have a high hardness and long operating life.
2. The power set to automatically transport the colored steel sheet is equipped in the forming press section, which can press the colored steel sheet with the thickness of 0.5~1.5mm. It is not needed to frequently adjust the clearance between the pressing rolls when pressing the sheet with different thickness, which can make the sheet come out from machine normally without scuffing of the coating film of the sheet. Being just like a “foolproof camera”, the operation of the machine is very simple. But the quality of the finished product can be guaranteed. 3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. The helping hand wheel and the counter are used in the adjustment of the bending of arch sheet, which makes the operation simple and guarantees the quality and the dimensional precision. 4. The hoisting tool is light and handy (The weight of hoisting tool of the United States is 30KG. And the weight of hoisting tool of our company is 2KG). It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick. The joining type of the roof is self-lock, which makes it easy to install and safe with excellent water proof and storm resistance. The curving roof can directly be produced on worksite, effectively lowering the cost. The product is widely used on large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on. |
|
Since we also do steel-structure buildings/projects home and abroad, and we also use our own machines, so we can give you complete technique support for machines and projects, like designing the project, making drawings etc.
|
There are mainly 13 types of K-span machines in my factory based on different span and feeding width distance and we can also design other dimension according to your requirements.
The types of our K-span machine
|
TYPE
|
Width of the coil
|
Width of the formed sheet
|
Thickness of the coil
|
Proper span
|
|
SX-600-303
|
600 mm
|
303mm
|
0.6-1.5 mm
|
d22m
|
|
SX-914-400
|
914mm
|
400mm
|
0.6-1.5 mm
|
d40m
|
|
SX-914-610
|
914 mm
|
610 mm
|
0.6-1.5 mm
|
d38m
|
|
SX-914-650
|
914 mm
|
650 mm
|
0.6-1.5 mm
|
d26m
|
|
SX-914-700
|
914 mm
|
700 mm
|
0.6-1.5 mm
|
d22m
|
|
SX-914-750
|
914 mm
|
750 mm
|
0.6-1.5 mm
|
d14m
|
|
SX-1000-610
|
1000mm
|
610mm
|
0.6-1.5mm
|
d39m
|
|
SX-1000-680
|
1000mm
|
680mm
|
0.6-1.5mm
|
d30m
|
|
SX-1000-700
|
1000mm
|
700mm
|
0.6-1.5mm
|
d25m
|
|
SX-1000-750
|
1000 mm
|
750 mm
|
0.6-1.5 mm
|
d22m
|
|
SX-1000-800
|
1000 mm
|
800 mm
|
0.6-1.5 mm
|
d14m
|
|
SX-1220-800
|
1250 mm
|
800 mm
|
0.6-1.5 mm
|
d42m
|
|
SX-1250-800
|
1250 mm
|
800 mm
|
0.6-1.5 mm
|
d42m
|
