Yantai Guangyu Auto Equipment Technology Co., Ltd.
China Manufacturer with main products: Balancer, Changer, Repair, Test |

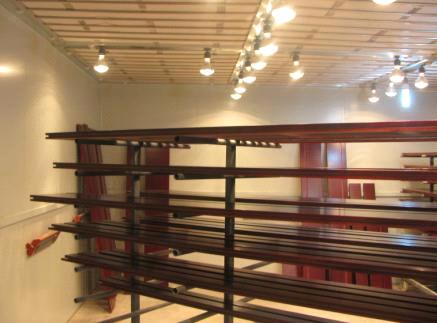

Paint Room
| FOB Price: | 6,000.00 - 9,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 10 days |
| Payment Terms: | T/T(Bank Transfer) |
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | cartons |
Specifications
|
Outside Size(mm)
|
7040X5690X3450(LXWXH)
|
|
Inside Size(mm)
|
6900X4000X2650(LXWXH)
|
|
Main door(mm)
|
3000X2600(WxH)
|
|
Total Power
|
30kw
|
|
Wall panel
|
EPS colorful steel skin board, wall panel: 70mm thick, ceiling panel: 50mm thick. The side door with a pressure lock which will automatically open when the pressure inside is over-pressure
|
|
Basement
|
full grid, adjustable height, galvanized steel sheet construction, three embossed steel ramp
|
|
Inlet Fan
|
Capacity: 24000m3/h; Pressure: 800 Pa
Power: 4kw; Quantity: 2 sets
|
|
Outlet Fan
|
Capacity: 24000m3/h; Pressure: 800Pa
Power: 15kw; Quantity: 1 set
|
|
Circulation System
|
The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust duct to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood
|
|
Purification System
|
dual filtering structure, the primary filter can capture granules larger than 10 μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.2mg/m3
|
|
Heating system
|
Italy Riello RG5S diesel burner, 260000Kcal/h, 20N damper motor, 2 sets quick dryer
Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%;
max temp:80℃, heating time: 4-6min(20-60℃),
fuel consumption:6-8kg/vehicle
|
|
Lighting System
|
ceiling Light: 32pcs 36w Philips lamp; bottom light: 32pcs 20w Philips lamp, 1100 Lux
|
|
Control system
|
PLC digital controlling, soft touching button, spray & baking switch, light switch, emergency stop, breakdown alarm
|
|
Environmental System
|
No-pump water curtain for mist filtering device can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensure a qualified exhaust according to the relevant state standards
|
|
Electrical Voltage
|
380V, 3 phases, 50HZ
|
