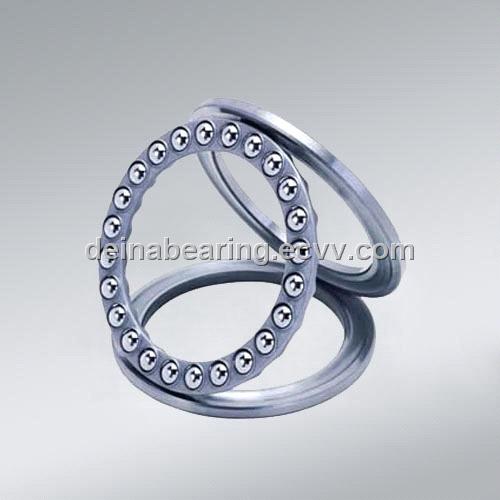

Thrust Ball Bearing (51122)

Thrust ball bearings-51122

Brand: DeINA

Description:
*The single direction thrust ball bearing consist of a shaft washer, a housing washer and a ball and cage thrust assembly.

*The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.

*The types: Bearings with a flat seat surface on the housing washer, bearings with a sphered seat surface and bearings with a sphered housing washer can be used together with a sphered seat washer
This type bearing can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial load.

Feature:
*single direction
*restricted tolerances
*vibration resistance
*suitable for high speed
*Radial load

Product selection:
Model d D T
Mm mm mm
51100 10 24 9
51101 12 26 9
51102 15 28 9
51103 17 30 9
51104 20 35 10
51105 25 42 11
51106 30 47 11
51107 35 52 12
51108 40 60 13
51109 45 65 14
51110 50 70 14
51111 55 78 16
51112 60 85 17
51113 65 90 18
51114 70 95 18
51115 75 100 19
51116 80 105 19
51117 85 110 19
51118 90 120 22
51120 100 135 25
D D T
Mm mm mm
51122 110 145 25
51124 120 155 25
51126 130 170 30
51128 140 180 31
51130-MP 150 190 31
51132-MP 160 200 31
51134-MP 170 215 34
51136-MP 180 225 34
51138-MP 190 240 37
51140-MP 200 250 37
51144-MP 220 270 37
51148-MP 240 300 45
51152-MP 260 320 45
51156-MP 280 350 53
51160-MP 300 380 62
51164-MP 320 400 63
51168-MP 340 420 64
51172-MP 360 440 65
51176-MP 380 460 65
51180-MP 400 480 65
D D T
Mm mm mm
51184-MP 420 500 65
51192-MP 460 560 80
511/500-MP 500 600 80
511/530-MP 530 640 85
511/560-MP 560 670 85
