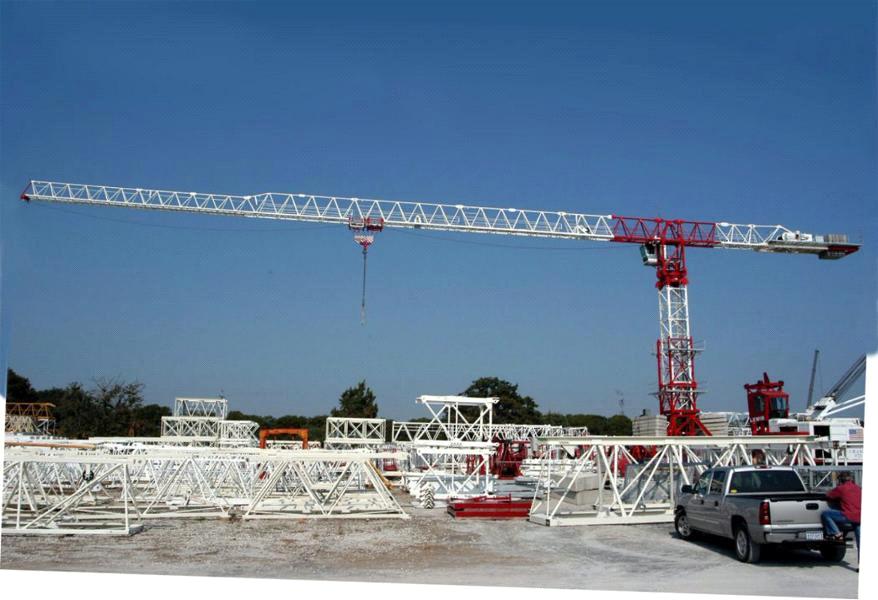

QTZ250 PT7025 Topless Tower Crane 12tons Max. Load 70m Boom Length L68 Mast Section
| FOB Price: | 153000.00 - 169000.00 USD/Set |
|---|---|
| Supply Ability: | 15 Set(s) per Year |
| Shipping: | 60 days to Qingdao port |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | containers per set PT7025 Topless tower crane |
Quick Details
- Feature: Tower Crane
- Certification: ISO, CE, EAC
- Brand Name: AVITT, HYCM
- Max. Lifting Height: 200M
- Max. Lifting Load: 12T
- Condition: New
- Warranty: 12 MONTH
- Model Number: QTZ250
- Span: 70M
- Rated Lifting Moment: 2500 KN.M
- Rated Loading Capacity: 12T
- Application: Building Construction
Specifications
QTZ250 PT7025 Topless Tower Crane 12tons Max.Load 70m Boom length L68 Mast Section
Specification
| Rated Lifting Moment (KN.M) | 2500 |
| Rated Loading Capacity (t) | 12 |
| Max. Lifting Load (t) | 12 |
| Span (m) | 70 |
| Working range (m) | 3 to 70 |
| Tip Load (t) | 2.5 |
| Max. Lifting Height (m) | 180 |
| Free standing height (m) | 50-60 |
| Rope length (m) | 500 |
| Slewing speed (r/min) | 0-0.6 |
| Trolley peed (m/min) | 0-60 |
| Jacking-up speed (m/min) | 0.4 |
| Power supply | 380V/50Hz or according to client's requirements |
| Power Capacity (kw) | 61.5 |
| Electric switch box | Schneider contactors |
| Main Material (mm) | 200*20 / angle steel |
| Mast section (m) | 2*2*3 (split type) |
the Eight advantages
1.Reduce the dismounting requirements, lower weight, low mounting height, dismount each mast at a time in the air, save the labor cost, safety and fast.
2. It is suitable for crossover work of the cranes, without the tower cap and pull rod, the safety will be increased when there need the crossover work.
3. It is suitable for the special requirement about the height, such as airport nearby, tunnel, workshop,and the construction site with high-tension cable.
4. It is suitable for the construction site that has the requirement about the crane boom, it can be used as internal climbing crane in the high-rise buildings, irregular roof or small areas.
5. It is very convenient for dismounting in the restricted construction site, dismount each crane boom at a time by manual.
6.the steel structure of crane boom has long using life and high safety standard.
7. the crane boom is good applicability, high-usage,the design of the topless tower crane boom is easy for realizing the serialization and standardization. Reduce the design and making cost.
8. Low design cost, short cycle, can much better satisfy the multiple demands of the customers.
Advantage of Fixed Tower Crane
1. 15 years of experience in supplying new tower cranes.
2. Export to more than 20 countries with CE/ISO/GOST/CU-TR Certificates.
3. Mobile and internal climbing type tower cranes are also available.
4. Impeller blasting and rust protection painting with advanced painting process.
5. Strict and experience welding line
6. New designed mast, can be used to Internal and external climbing tower crane
7. Well known brand mechanism system, Schneider Electronic control system, Jjiangte or Jiuhe motor
8. Engineers available to service machinery overseas.
9. for warranty: 12 months from the B/L date.
Why choose us
1. A professional tower crane supplier in China with 15 years experience
2. Exported to more than 20 countries with ISO9001 & CE & GOST Certifications
3. Hydraulic self-climbing mechanism
4. Variable-frequency slewing mechanism
5. Varialbe-speed frequency PLC control System
6. Operation data display screen and Safety monitoring system (Black Box)
7. Various safety devices
