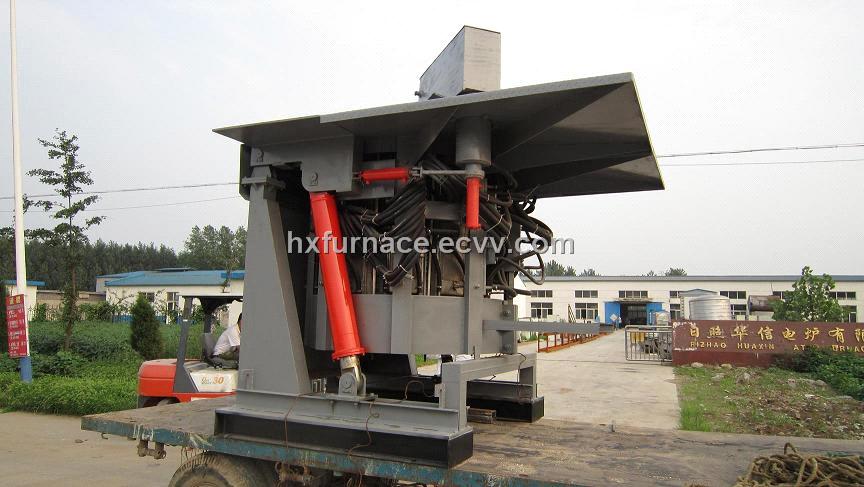

Intermediate Frequency Heat Holding Furnace

Shipping:	30 days
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Plywood Box or Nude

Specifications

1.Production Name: Intermediate Frequency Heat Holding Furnace

2.Production Description:

1) Intermediate Frequency Induction Furnace for Heat Holding

2) Melting Holding Furnace

3) Energy Saving Furnace

4) High efficiency, good performance

3.Usage: Medium Frequency Induction Furnace Mainly used in melting steel, iron, copper, aluminum and alloy, is with high melting efficiency, good electricity saving effect, good metal component uniformity, less burning loss, speedy temperature rise, easy control of temperature, is suitable to all kinds of metal melting.

4.Characters and Advantages:

1) Constant power output, speedy melting, good electricity saving efficiency.

2) Zero-voltage sweep-frequency style start, adapts to requirement of frequently start.

3) Comprehensive protection functions, such as overcurrency protection, overvoltage protection, current-limiting protection, voltage-limiting, water-break protection, and default protection, equipment runs reliably under premise of melting speed guarantee.

4) Easy to operate, suitable for all casting process.

5. Package: Plywood cases and nude

6. GWB Series Medium Frequency Heat Holding Furnace Technology Specifications:

Rated Capacity (T)	Rated Power (KW)	Power Input		Power Output		Transformer(KVA)
Rated Capacity (T)	Rated Power (KW)	Inlet wire Voltage (V)	Inlet wire Currency (A)	Medium Frequency Voltage (V)	Rated Power(Hz)	Transformer(KVA)
1	150-300	3N-380	260-490	750	0.3-0.5	160,315
2	250-400	3N-380	260-650	750	0.3-0.5	315,500
3	300-500	3N-380	490-830	750	0.3-0.5	315,500,630
5	600-800	3N-380	1000-1330	750	0.3-0.5	800,1000
8	700-1000	3N-660	780-1120	1200	0.2-0.4	800,1250
10	900-1200	3N-660	1000-1330	1200	0.2-0.4	1000,1250
12	1000-1500	3N-660	780-1680	1200	0.2-0.4	1250,1600
15	1200-1600	3N-660	1000-1800	1200	0.2-0.4	1600,2000
