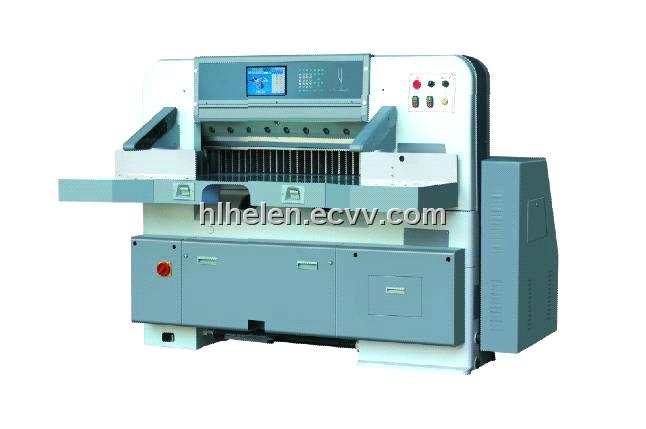

QZYK920D-8 program control double hydraulic double guide paper cutter
| Payment Terms: | T/T(Bank Transfer) |
|---|
Related products from verified members
Specifications
Machine Name:QZYK920D-8 program control double hydraulic double guide paper cutting machine/guillotine
Description:
1. Usage: QZK920D Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
2. COMPUTER:American industry computer is used as paper feeding system, for it is low in noise, adjustable in speed ranging from 6m/min to18m/min, and location precision up to ±0.01.
3.COMPUTER control system adopts original full set of computer control, with large program storage of 9999 lines of programs, and secure performance and 300,000 hours' memory. Display screen is 10.4-inch Japanese SHARP color screen, in which menu color can be adjustable
4. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate
5. Double Guide Device: the paper pusher adopts double linear guide and roller ball screw. Our high rigidity linear guides design has its patent no: ZL 2005 2 0074357.0
6. Photo cell: it is equipped with a photo cell safety protection device.
7. Over load protection device; convenient knife changing device.
8. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
9. Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
10. Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.
11. Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.
12. Main electric device are imported from Germany, French, Japan, etc.
Detailed Data:
DF10.4-inch Color Screen
DL8-inch Color Screen
DH5.7-inch Blue Screen
|
Model
|
137DE
|
115DE
|
130DF
|
920DE
|
|
Max. Cutting Width
|
137cm
|
115cm
|
130cm
|
92cm
|
|
Max. Cutting length
|
145cm
|
115cm
|
130cm
|
110cm
|
|
Max. Cutting length
|
16.5cm
|
16.5cm
|
13cm
|
13cm
|
|
Max.Clamping pressure
|
45000N
|
40000N
|
40000N
|
35000N
|
|
Cutting speed
|
45
|
45
|
45
|
45Time/min
|
|
Main motor power
|
4kw
|
4kw
|
4kw
|
3kw
|
|
Air pump motor
|
0.75kw
|
0.75kw
|
0.75kw
|
0.55kw
|
|
Sending paper motor
|
0.55kw
|
0.55kw
|
0.55kw
|
0.55kw
|
|
Weight
|
4500kg
|
3800kg
|
3800kg
|
2700kg
|
|
Overall dimensions
|
295×140×200cm
|
275×140×191cm
|
280×140×191cm
|
230×140×191cm
|
|
Width with sideway
|
287cm
|
265cm
|
280cm
|
242cm
|
|
Width with sideway
|
236.4cm
|
216cm
|
216cm
|
172cm
|
|
Length
|
277cm
|
249cm
|
249cm
|
218cm
|
|
Front table length
|
73cm
|
71.5cm
|
71.5cm
|
65cn
|
|
Table height
|
90cm
|
90cm
|
90cm
|
90cm
|
|
Voltage (three-phase)
|
V361-399
|
V361-399
|
V361-399
|
V361-399
|
|
Wire size
|
2.5mm2
|
2.5mm2
|
2.5mm2
|
2.5mm2
|
for more information, pls add my skype:helenjoe.china. Thank you. let's build a flourishing business.
