Specifications

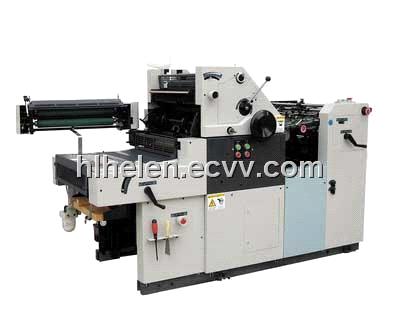

Machine Name: HL47NP single color offset press/offset printer/offset machine
Description:
Description:
PROFILE OF HL47NP OFFSET PRESS
1. Easy operation:dampening,inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.
2. Exact registration:Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment,plate cylinder registration of up/down.
3. Dampening and inking separated:Dampening system is separated from inking system,which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4. preset counter:This machine adopts electromagnetic preset counter. If the quantized printing work finishes, the paper feeding stops automatically.
5. Double sheets detection:It can avoid the problem such as double sheets,paper overlap and non-stop.
6. The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.
Detailed Data:
|
Model
|
HL47NP
|
|
Max. printing size
|
460 × 345mm
|
|
Max. sheet size
|
470 × 365mm
|
|
Plate size
|
470 × 395 × 0.15mm
|
|
Blanket size
|
470 × 420 × 1.95mm
|
|
Usable paper
|
28-250g/㎡
|
|
Ink roller
|
10pcs (2 forme inking rollers)
|
|
Dampening roller
|
4pcs (1 forme dampening roller)
|
|
Molleton
|
thick: 76 stitches; thin: 44stitches
|
|
Numbering device
|
Straight type (horizontal): 49 heads Max.
(7 heads on a ring × 7 rings on a shaft)
Convex type (vertical): 40 heads Max.
(5 heads on a ring × 8 rings on a shaft)
|
|
Letter press printing device
|
Cylinder type: 90 × 345mm Max.
Mounting ring type: 30 × 40mm Max.
|
|
Perforating device
|
Cross perforation: Min 25mm
Vertical perforation: 5mm(blade-perfo type)
2cm(rotary-perfo type
|
|
Ink rollers for NP unit
|
6pcs(2 forme inking rollers)
|
|
Printing speed
|
2000-7000 sheet/hour
|
|
Power supply
|
Single-phase: 220v,50Hz
|
|
Main motor
|
0.75kw
|
|
Air pump motor
|
0. 55kw
|
|
Machine dimension
|
1730(L) × 880(W) × 1200(H)mm
|
|
Net weight
|
800kg
|
|
Packing case dimension
|
2100(L) × 1000(W) × 1450(H)mm
|
for more information, pls add my skype:helenjoe.china. Thank you. let's build a flourishing business.
