Zhejiang Haoly Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Paper Cutter, Card Printer, Offset Press, Sewing Machine, Laminator, Die Cutting Machinery, Label Printing Machine, Binding Machine |
Related products from verified members
-
Price:790.00-1,500.00 USD/PieceMin. Order:1 Piece -
Price:3.10-4.10 USD/Square MeterMin. Order:1,000 Square Meters
Specifications

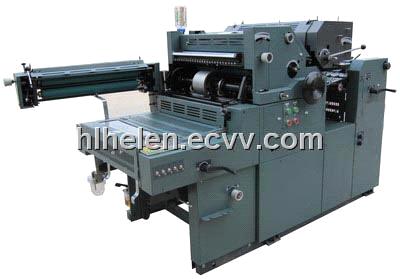

Machine Name: HL47NPS / HL56NPS double color offset press/offset printer/offset machine/offset printing machine
Description:
Description:
PROFILE OF HL47NPS / HL56NPS DOUBLE COLOR OFFSET PRESS
1. Easy operation: dampening, inking and pressing are operated by one handle at different level. The pressing cylinder on/off is controlled by Electric-Eye exactly and reliably.
2. Exact registration: Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment, plate cylinder registration of up/down.
3. Dampening and inking separated: Dampening system is separated from inking system, which can adjust dampening and inking flexibly and content the requirement of different printing items for dampening and ink.
4. Preset counter: This machine adopts electromagnetic preset counter. If the quantized printing work finishes, the paper feeding stops automatically.
5. Double sheets detection: It can avoid the problem such as double sheets, paper overlap and non-stop.
6. The whole machine is controlled by PLC with the function of automatic stop if paper jam.
7. Our company produces 47 series and 56 series offset printing machine, including A-type, Ⅱ-type. There are various models of The NP machine. Most of machines can be installed second color printing device.
8. NP device: printing, number printing, red chromatography, stamp press printing, perforation line, these function can be finished one time. It makes high work efficiency.
Detailed Data:
|
Model
|
HL47NPS
|
HL56NPS
|
|
Max.printing size
|
460 × 345mm
|
550 × 375mm
|
|
Max. sheet size
|
470 × 365mm
|
560 × 400mm
|
|
Plate size
|
470 × 395 × 0.15mm
|
560 × 420 × 0.15mm
|
|
Blanket size
|
470 × 420 × 1.95mm
|
560 × 460 × 1.95mm
|
|
Usable paper
|
28-250g/㎡
|
28-250g/㎡
|
|
Ink roller
|
10pcs (2 forme inking rollers)
|
10pcs (2 forme inking rollers)
|
|
Dampening roller
|
4pcs (1 forme dampening rollers)
|
4pcs (1 forme dampening rollers)
|
|
Numbering device
|
Straight type (horizontal):49heads Max.
(7 heads on a ring×7 rings on a shaft)
Convex type(vertical):40 heads Max.
(5 heads on a ring×8 rings on a shaft)
|
Straight type(horizontal): 56 heads Max.
(7 heads on a ring × 8 rings on a shaft)
Convex type(vertical): 45 heads Max.
(5 heads on a ring × 9 rings on a shaft)
|
|
Letter press device
|
Cylinder type: 90 × 345mm Max.
Mounting ring type: 30 × 40mm Max.
|
Cylinder type: 90 × 345mm Max.
Mounting ring type: 30 × 40mm Max.
|
|
Perforating device
|
Cross perforation: Min 25mm
Vertical perforation:
5mm(blade-perfo type)
2cm(rotary-perfo type)
|
Cross perforation: Min 25mm
Vertical perforation:
5mm(blade-perfo type)
2cm(rotary-perfo type)
|
|
Ink rollers for NP unit
|
6pcs(2 forme inking rollers)
|
6pcs(2 forme inking rollers)
|
|
Printing speed
|
2000-8000 sheet/hour
|
2000-8000 sheet/hour
|
|
Power supply
|
single-phase: 220v,50hz
|
single-phase: 220v,50hz
|
|
Main motor
|
0.75kw
|
1.5kw
|
|
Air pump motor
|
0.55kw
|
0.55kw
|
|
Machine dimension
|
1730× 900× 1200mm
|
1760 × 970 × 1340mm
|
|
Net weight
|
1000kg
|
1150kg
|
|
Packing case dimension
|
2100 × 1000 × 1450mm
|
2100 × 1150 × 1450mm
|
for more information, pls add my skype:helenjoe.china. Thank you. let's build a flourishing business.
