Specifications

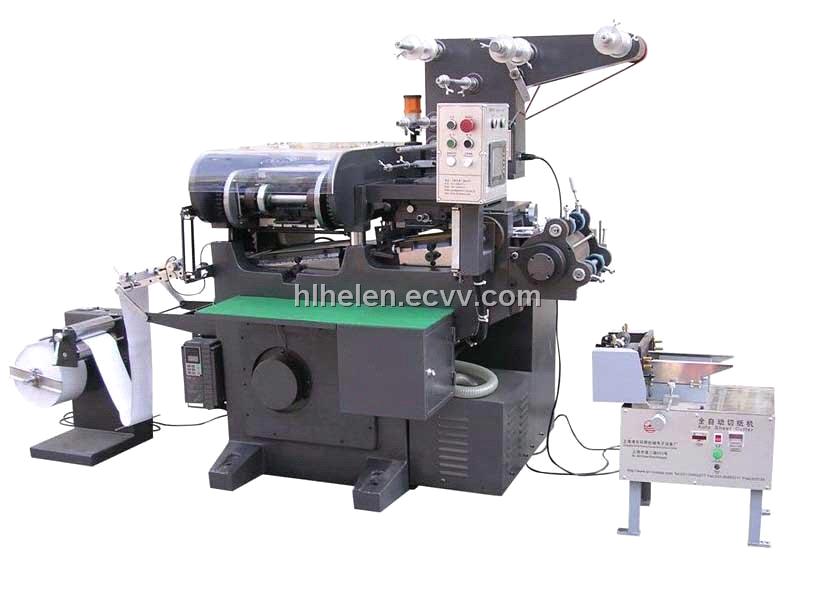

Product Name: CNC control high speed oblique adhesive printer
Description:
STANDARD ACCESSORIES SELECTIVE FUNOTIONS
|
Complete 3-Color Attachment
|
1 set
|
Computer sprocket Holes Punching Controlling System
|
|
Complete 4-Color Attachment
|
1 set
|
|
|
Auto Feeder
|
1 set
|
Variable Punch Model
|
|
Upper & Lower Chases for Die-Cutting
|
1 set
|
Hot-Stamping
|
|
Upper & Lower Chases for Hots Cutting
|
1 set
|
Printed Label-well Rewinder
|
|
Printed label Auto SheetCutter
|
1 set
|
UV machine
|
|
|
|
HL210T - This machine is digitally controlled by PLC computerize system. The movement is driven by servo motor. Printing setup via operation display with maximum length up to 500mm. The photo sensor tracking system allows repeat printing for front and reverse sides of the label. It achieves accurate registration for repeat printing within 0.03mm tolerance.
1.Photo Sensor: Model: SICK
2.Digital AC servo motor&driver.Model: MSDA 082AIG.750W.Panasonic Japan.
3.Low backlashplanetary gearboxes Model:PLE-80 Germany NEUGART
4.PLC (Programmable controller)
Model:FUJINWOP20T-31.Japan Fuji Electric FA components & systems CO.,LTD
5.POD (Fuji programmable Operation Display)
Model:UG221H-LE4 Japan Fuji.
6.Transistor inverter.Fuji Japan.Model:2.2KW/FRN 2.2G11S-4cx
7.Relay Contactor.Variabk Resister Germany Schneider
8.Bearing IKO.NSK.NACHI
Specifications
|
Model
|
HL-210T
|
|
|
Chase Dimension (mm)
|
200*300
|
|
|
Chase Dimension
|
1-2 Color(mm)
3 Color(mm) 4 Color(mm) |
200*300
200*90 200*65 |
|
MaxPaperWidth(mm)
|
220
|
|
|
Max Hot-Stamping Area(mm)
|
200*140
|
|
|
Max Die-Cutting Dimension(RPM)
|
200*210
|
|
|
Printing Speed (P/min)(mm)
|
50*200
|
|
|
Machine Size (L*W*H) (mm)
|
1980*1200*1650
|
|
|
Machine Weight
|
Net Weight (Kgs)
|
2300
|
|
Gross Weight (Kgs)
|
2600
|
|
|
Measurement (CBM)
|
7
|
|
|
Power & Motor
|
Main Drive Motor (kw)
Air Suction Motor(kw)
Laminating & Matrix Winder (kw)
Hot-StampingHeater(kw) |
3.00
0.375 0.040 750 |
for more information, pls add my skype:helenjoe.china. Thank you. let's build a flourishing business.
