Home >Products Catalog > HL-FM-1100BHigh-precision multi-used Laminator heating oven Lengthened

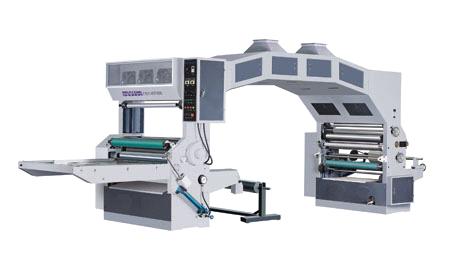

HL-FM-1100BHigh-precision multi-used Laminator heating oven Lengthened

Payment Terms:	T/T(Bank Transfer)

Inquiry Now

Specifications

Item: HL-FM-1100BHigh-precision multi-used Laminator heating oven Lengthened

SPEC

USE: The machine adopts Cast-iron structure, Sophisticated manufacturing process, long service life; Pressure rolls, bake Road, automatic constant temperature control; The gluing rolls and the glue spreading rolls are high precision, uniform coating; this machine not only can laminate paper, but also metal sheet, plastic sheet and other materials.

FEATURES:

1. The machine adopts Cast-iron structure, Sophisticated manufacturing process, long service life.

2. Pressure rolls, bake Road, automatic constant temperature control

3. The gluing rolls and the glue spreading rolls are high precision, uniform coating

4. This machine not only can laminate paper, but also metal sheet, plastic sheet and other materials.

MAIN TECHNICAL DATA

Model	HL-FM-1100B	HL-FM-1000B	HL-FM-800B
Width of laminating	1050mm	950mm	800mm
Speed of laminating	0-38m/min	0-38m/min	0-38m/min
Pressure of laminating	0-25MPa	0-25MPa	0-25MPa
Temperature of laminating	30-120	30-120	30-120
Total Power	40KW	40KW	40KW
Weight of Machine	3.4T	3.2T	3T
Overall Dimensions	630017202600mm	630016202600mm	630015002600mm

for more information, pls add my skype:helenjoe.china. Thank you. let's build a flourishing business.
