Zhejiang Haoly Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Paper Cutter, Card Printer, Offset Press, Sewing Machine, Laminator, Die Cutting Machinery, Label Printing Machine, Binding Machine |
Related products from verified members
Specifications

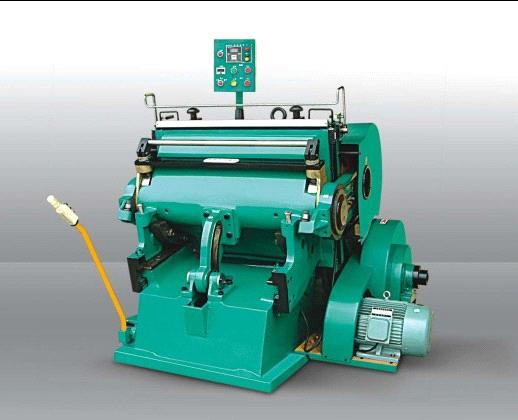

Item: Creasing & Cutting Machine ML-1100/1200
SPEC
SPEC
ML series hand feed die cutting & creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price.
Features:
1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.
2. Flywheel with big moment of force and large pressure.
3. High strength due to whole iron casting by using high quality material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 0-99 seconds.
6. Operating position is reasonably designed, moving-bed can be opened to its optimum.
7. Central lubrication system guarantees fine lubrication and reduces friction.
8. Safety protection system is reliable.
9. Adjustable chase clamp structure can adapt all kind of die mould plate.
10. Easy to operate and maintain.
11. Electric control system is in line with international standard.
12. CE standard type can be made upon request.
MAIN TECHNICAL DATA
|
Model
|
ML1100
|
ML1200
|
|
Working area of Platen
|
1100× 800mm
|
1200× 820mm
|
|
Working speed
|
22time/min ± 2
|
22time/min ± 2
|
|
Max.length of Cutting
|
30m
|
5m
|
|
Distance Adjusting
|
27+10 -1mm
|
27+10 -1mm
|
|
Model of paper feeding
|
By hand
|
By hand
|
|
Power of Main Motor
|
4kw
|
4kw
|
for more information, pls add my skype:helenjoe.china. Thank you. let's build a flourishing business.
