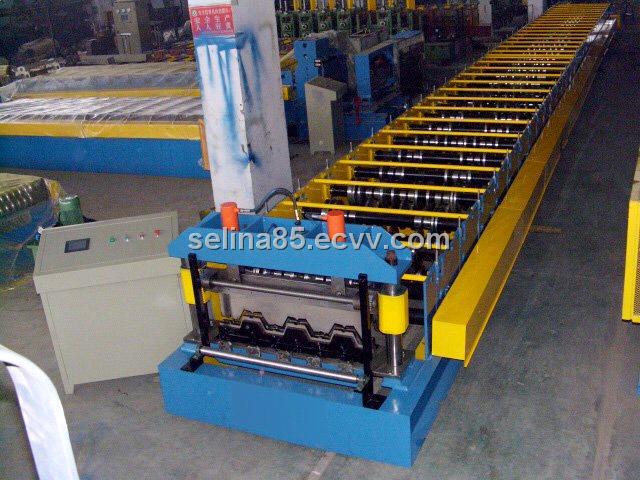

Floor deck forming machine
| FOB Price: | 40,000.00 - 80,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Year |
| Shipping: | 45days |
| Payment Terms: | T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|---|
| Packaging Details: | 40HQ |
Specifications
Shanghai Huiming Machinery Co.,LTD
Contact Person: Selina Zou
Mobile: 0086 136 5180 8836
This type of machine is specially designed for deck,the closed joint-point can supply better loading capacity,in the same condition,the closed deck sheet is better effective width than other deck sheets and supplies stronger resistance.Because the musle of sheet is covered by concret,so it has fireproof and insulating function.Install the sheet quickly, the service life is long .
Floor Deck Roll Forming Machine Features:
1) Consists of uncoiler and its base, coil sheet guiding equipment, roll forming
system, post-cutting equipment, hydraulic station, controlling system, supporter
table
2) The corrugated profile sheet produced by this machine has high strength with big
rib, which adheres well to concrete
3) It's best to be used as the floor of high buildings, and the cost of such floor
is low
4) Material spec: galvanized steel sheet
5) Thickness of coil Sheet: 0.8 - 1.2 mm
6) Main motor power: 18.5kW
7) Forming speed: 10-12m/min
8) Hydraulic station power: 3kW
9) Quantity of stands about: 24 groups
10) Hydraulic pressure: 10 - 12Mpa
11) Controlling system: PLC
12) Index error of length: 10m±2mm
13) Total weight: about 1800kg
14) Voltage: 380V 3 phase 60Hz or at buyer's requirement
15) Standard equipment of floor deck roll forming machine
a) Passive uncoiler 1pcs
b) Guiding equipment 1set
c) Rolling forming equipment 1set
d) Main body 1set
e) Post-cut equipment 1set
f) Hydraulic station 1pcs
g) PLC controlling desk 1pcs
h) Supporter table 2pcs
1) Consists of uncoiler and its base, coil sheet guiding equipment, roll forming
system, post-cutting equipment, hydraulic station, controlling system, supporter
table
2) The corrugated profile sheet produced by this machine has high strength with big
rib, which adheres well to concrete
3) It's best to be used as the floor of high buildings, and the cost of such floor
is low
4) Material spec: galvanized steel sheet
5) Thickness of coil Sheet: 0.8 - 1.2 mm
6) Main motor power: 18.5kW
7) Forming speed: 10-12m/min
8) Hydraulic station power: 3kW
9) Quantity of stands about: 24 groups
10) Hydraulic pressure: 10 - 12Mpa
11) Controlling system: PLC
12) Index error of length: 10m±2mm
13) Total weight: about 1800kg
14) Voltage: 380V 3 phase 60Hz or at buyer's requirement
15) Standard equipment of floor deck roll forming machine
a) Passive uncoiler 1pcs
b) Guiding equipment 1set
c) Rolling forming equipment 1set
d) Main body 1set
e) Post-cut equipment 1set
f) Hydraulic station 1pcs
g) PLC controlling desk 1pcs
h) Supporter table 2pcs
i) Security cover (optional) 1set
Floor decking roll forming machine,
Steel floor deck roll forming machine,
Deck floor roll forming machine,
decking floor roll forming machinery
floor decking sheet roll forming machine,
floor decking panel roll forming machine,
deck floor panel roll forming machine
