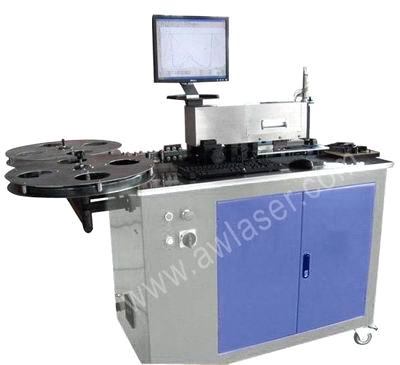

AW-600B Automatic Bending Machine

Payment Terms:	L/C, T/T(Bank Transfer), Western Union

Inquiry Now

Related products from verified members

Hydraulic Press Brake

Price:10323.00-11470.00 USD/Piece

Min. Order:3 Pieces
Mechanical Lifting High-speed Dispersion Machin...

Price:

Min. Order:
AB-A1

Price:140.00-150.00 USD/Piece

Min. Order:1 Piece
Bending Press

Price:

Min. Order:1 Set
Profile Bender-Section Bar Bender

Price:

Min. Order:1 Set
HPB series hydraulic bending press

Price:1.00 USD/Piece

Min. Order:1 Piece
WC67Y Hydraulic Plate Benders

Price:3,000.00-10,000.00 USD/Set

Min. Order:1 Set
PLC Control Induction Pipe Bending Machine

Price:250000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Hubei in China
Packaging Details:	compound Wooden Cases with Exporting Standard

Specifications

Description:

This model is easy to operate, which supports the DXF format of AutoCAD software, and *AI format of CorelDraw and Illustrator software. It will save time and raise efficiency greatly because there is no need to draw the motion map through AutoCAD Software again. It is widely used in the field of printing, packing, shrink packing, carton packing, electronics, adhesive sticker industry, etc.

Features:

l Automatic punching bridge, pneumatic olecranon, straight cutting, etc

l Adopt the mode of bending first, next cutting, it will reduce the cost of material.

l Servo digital roller feeding system can feed the blades continuously, with high precision and speed.

l Good bending performance, loading knifes in a short time.

Technical Parameters:

Model	AW-600B
Max. Angle	130°
180°Arc Min. Radius	R3.0
90° Arc Min. Radius	R1.0
Min. Bending length	1mm
Min. Cutting length	0.5mm
Support Format	AI, DXF, *NC
PC Configuration	P4 , 19” LCD
Voltage	220V, 50HZ
Gross Weight	200kg
Air Pressure	6kgf/cm²
Power	1200W
Cutting Thickness	0.45mm-0.71mm
Cutting Height	8mm-23.8mm
Dimension	1400×640×1500mm
