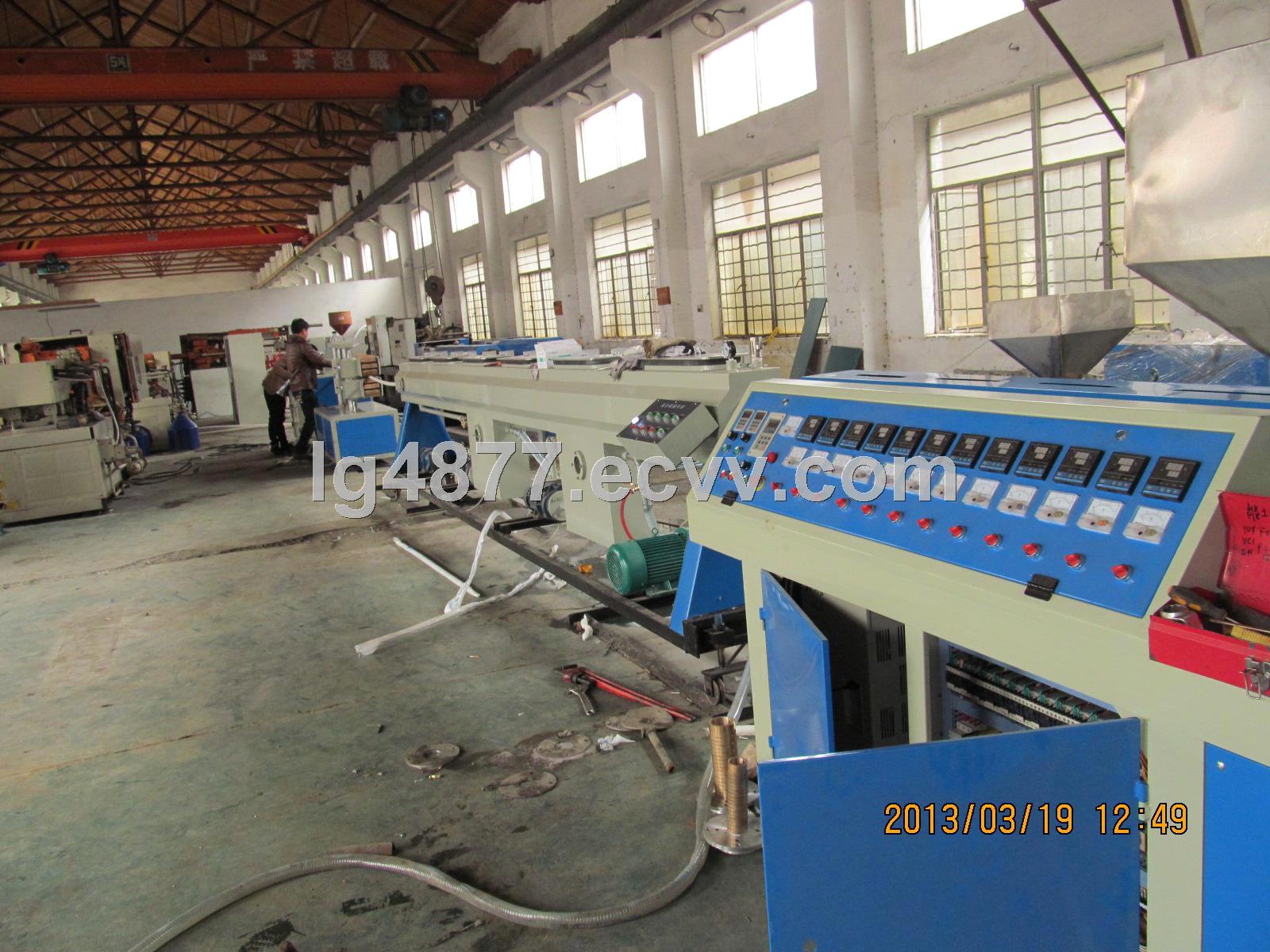

PE Pipe Making Machine/HDPE pipe manufacturing plant

FOB Price:	15,000.00 - 30,000.00 USD/Set
Supply Ability:	300 Set/Sets per Year
Shipping:	30days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: No overseas service provided
Warranty: one year
Certification: CE
Weight: 5T
Dimension(L*W*H): 15m*1.5m*1.8m
Power(W): 18.5kw
Voltage: 380/220/415V
Model Number: GB-SJ65
Brand Name: GB
Production Capacity: 120kg/hr
Application: Drain Pipe
Type: Pipe Production Line
Condition: New

Specifications

PVC/PE/LDPE/HDPE pipe machine

PE pipe making machine
PE pipe production line
PE pipe extrusion machine
PE pipe making line
PE pipe extrusion line
HDPE pipe making machine
HDPE pipe production line
HDPE pipe extrusion line

GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
1)PVC pipe machine used to produce upvc /cpvc/PE water pipe/drainage pipe
2)High technology and long year experience
PVC pipe machine

designed for producing PVC pipe

It mainly includes

1)single screw extruder,

2)pipe extrusion die,

3)vacuum calibrating water tank,

4)spray cooling water tank,

5)hauling unit,

6)cutting unit

7)stack unit.

model		PE,PP,PVC 63			PE,PP,PVC110
pipe range(mm)		20-63			63-110,110-160
capacity(kg/h)		100			150-200
center height(mm)		1000			1000
single screw extruder	extruder model		SJ65	SJ90
	screw diameter(mm)		65	90
	L/D		28:1	33:1
	Screw rotation speed(rmp)		80	100
	motor power(kw)		22	55
	heating power(kw)		16	36
	coolin blower power(kw)		0.75	0.75
vacuum calibration tank	length of calibration case(mm)		6000	6000*2
	vacuum degree(mpa)		0-0.1	0-0.1
	absorbing gas speed(m3/h)		60	60*2
	water pump power(kw)		4	4
	longitudinal moving motor power(kw)		1.1	1.1
Spray cooling tank	length of spraying tank(mm)		4000-6000	6000-8000
	water pump power(kw)		4	5.5*2
haul off machine	driving power(kw)		1.5	2.2
	max pull(N)		7000	8000
	effctive haul off length(mm)		1200	1500
Pneumatic blade type cutter	blade diameter(mm)		300	350
	driving power(kw)		1.1	1.1
	working air pressure(mpa)		0.7-0.7	0.7-0.7
stacker	length(mm)		6000	6000
