>Products Catalog > INTRINSICALLY SAFE INDUSTRIAL KEYBOARD > Intrinsically Safe Industrial Keyboard (X-PP89D)

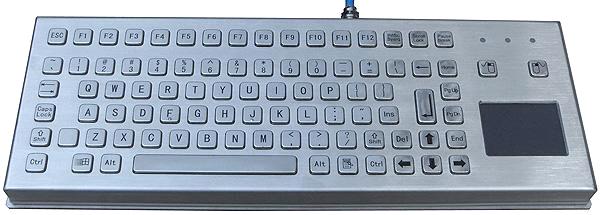

Intrinsically Safe Industrial Keyboard (X-PP89D)
| Supply Ability: | 2,000 Set/Sets per Month |
|---|---|
| Shipping: | 1-2 weeks after payment is received. |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Bulk packing, each unit with label marked CE, FCC and RoHS to a box. |
Specifications
Intrinsically Safe Industrial Keyboard, intrinsically safe keyboard, desk top keyboard
SERIES NO. : X-PP89D
SERIES NO. : X-PP89D
DESCRIPTION: 89 keys vandal proof stainless steel intrinsically safe industrial desk top keyboard with function keys, ruggedized touchpad, with carbon-on-gold key switch technology for fast and accurate data input.
MODEL NO. : X-PP891D
DIMENSIONS: 405.0mm x 145.0mm x 30.0mm (L x W x H)
MAIN FEATURE
1. Intrinsically safe industrial desk top keyboard.
2. Ex-mark: ExibI.
3. It can used in the environment with methane and coal dust explosive mix.
4. Function keys (F1, F2, F3... F12) are on the top line of the Keyboard for easy operation.
5. Rugged construction for reliable functionality
6. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
7. Waterproof execution according to degree of protection IP65, the keyboard is sealed against the ingress or liquid and dirt
8. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
9. Internet friendly key layout, ease of customizing with multiple languages, to accommodate foreign or custom variants.
10. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
MECHANICAL DATA
1. Key: 89 keys, super quality brushed stainless steel
2. Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
3. Key travel: 2.0mm
4. Front Plate: Super quality brushed stainless steel
5. Actuator/keys/Casing materials: Super quality stainless steel
6. G. W.: 2.70KGs(X-PP891D)
TOUCHPAD DATA
1. Touchpad cover: Composite
2. More than Lifetime 10 million strokes
3. Mutual Capacitance sensing
4. X/Y position sensing resolution: 40 counts/mm
5. X/Y position reporting: Relative
6. Output (self-detectable depending on cable): PS2 or USB
7. Tracking speed: Maximum 1,016 m/sec
8. Power supply voltage: 5V DC 0.25V
9. Current rating (active mode): 17 mA
ELECTRICAL DATA
1. Ex-mark: ExibI.
2. Intrinsically safe data : Ui: DC5V; I: 40mA; Ci: 0F; Li: 0mH
3. Supply Voltage: +5V DC +/-5%
4. Current Rating: appr. 20mA
5. Contact materials: carbon-on-gold key switch technology
6. Interface: PS2, USB available.
7. OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7inux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
1. Operating temperature: -20oC to +60oC
2. Storage temperature: -30oC to +70oC
3. Operating RH: 30-90%
4. Atmospheric pressure: 60-106Kpa.
RELIABILITY
1. RoHS Compliant, CE and FCC
2. Protection Level: IP65
3. Vandal resistant IK09
4. MTBF > 50000H
5. MTTR < 30min
