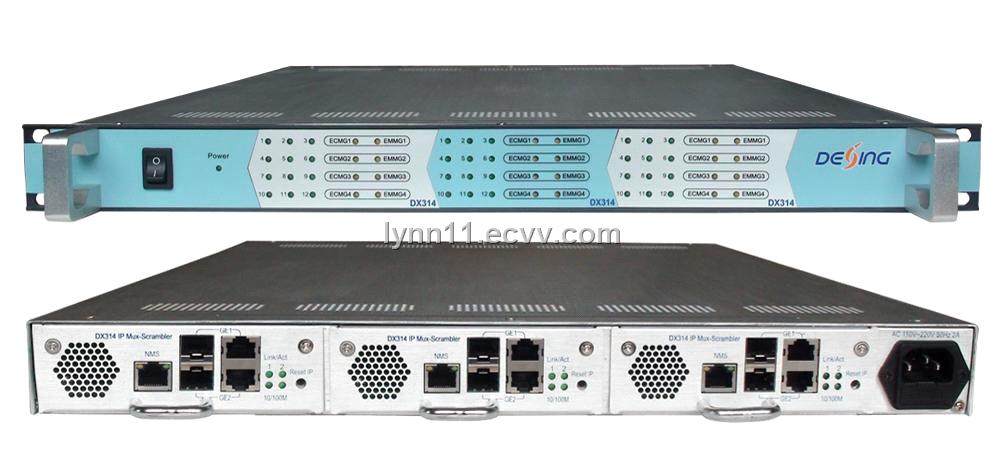

DX314 IP Mux-Scrambler Module
| FOB Price: | 1.00 - 6,000.00 USD/Piece |
|---|---|
| Supply Ability: | 100 Piece/Pieces per Month |
| Shipping: | immediately |
| Payment Terms: | T/T(Bank Transfer), Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Sichuan in China |
|---|---|
| Packaging Details: | Carton |
Specifications
Outline:
DX314 4 in 1 IP Mux-Scrambler is the latest multiplexing and scrambling device with high integrity and powerful function. The modular design of this device makes each of its daughter cards stand-alone when operating, Besides, each daughter card can receive the UDP format TS through GE port, furthermore, it supports up to 12 different IP address or port number, which can generate 4 multiplexer with 12 input and 4 stand alone scrambler, and both device can output UDP format TS through the two gigabits Ethernet. Additionally, the 1U chassis can support maximum 3 modules (12 scrambling), and the 4U chassis can support maximum 12 modules (with 48 scrambling). In a conclusion, its high integrates and cost effective design make this device widely used in the new generation of CATV broadcasting system.
Features:
-
Module design, the 1U case can support maximum three modules, and the 4U case can support maximum 12 modules.
-
Totally supports DVB general scrambling system description—the ETR289, and DVB simulcrypt-- ETSI 101 197 and ETSI 103 197
-
The 2 GE ports support backup input, support maximum 12 IP input and network de-jittering
-
Supports UDP protocol, unicast and multi-cast, supports IGMP V2/V3
-
The maximum bit-rate of single IP is 108Mbps, and the total input bit-rate is 840Mbps
-
Supports maximum 4 input and multiplexing channels
-
Supports any input channel to any output channel multiplexing, and the maximum PID mapping of each channel is 256
-
Supports PCR accurate adjustment
-
Supports PSI/SI inserting and editing
-
Supports 4 channel scrambling, and each scrambling channel can simultaneously support 4 simulcrypt CA
-
Supports NMS
Specification:
|
Input
|
Interface
|
2 GE inputs, RJ45 or SFP interface, hot backup
|
|
Transport Protocol
|
TS over UDP, Unicast and Multicast, IGMP V2/V3
|
|
|
Transmission Rate
|
Max 108Mbps of each channel
Max 840Mbps of all channels
|
|
|
Multiplexing
|
Input channel
|
12
|
|
Output channel
|
4
|
|
|
Maximum PID
|
256 per channel
|
|
|
Function
|
PID re-mapping(auto, manual)
|
|
|
PCR correction
|
||
|
Auto generate PSI／SI table
|
||
|
Scrambling
|
Maximum simulcrypt CA
|
4
|
|
Standard
|
ETSI 101 197,ETSI 103 197
|
|
|
Connection mode
|
Local/ remote connection
|
|
|
IP output
|
Interface
|
2 GE output , RJ45 or SFP interface
|
|
Format
|
TS over UDP
|
|
|
Code rate
|
1-54Mbps of each channel
|
|
|
System
|
Supports (NMS)
|
|
|
General
|
Dimension(WxLxH)
|
482mm×455mm×44.5mm
|
|
Weight
|
6kg
|
|
|
Temperature
|
0~45℃(working ), -20~80℃(storage)
|
|
|
Power supply
|
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
|
|
|
Power consumption
|
15.4W
|
|
