Sky Flying Industrial Development Limited
China Manufacturer with main products: Metal Detector, Hand Held Metal Detector, under Ground Metal Detector, Search Mirror, Security Product, Safety Product, x-Ray Screening... |

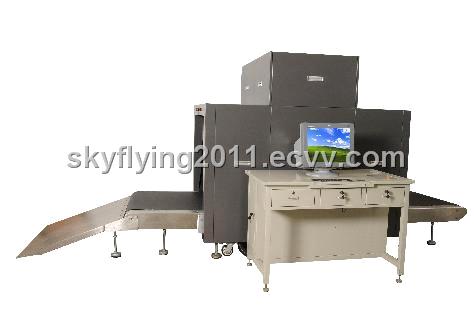

X Ray Screening System (Model: AT10080)
| Shipping: | within 3-15 wordking days after receipt of the payments |
|---|---|
| Payment Terms: | T/T(Bank Transfer), Western Union |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
FEATURE:
1. Alarm by sounds & light:: Alarm by sounds and light when conform to condition.
2. Network interface: Could be connect local area network and support multi-terminal check baggage at same times
3. Safety ray: Transmit ray under automatic control, avoids the miss.
4. Turn off by a key control: Turn off the machine only need one step: revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
5. Eagle-eye: Could be expediently observing enlargement area.
6. Estimate malfunction by self: Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA:
Tunnel Size: 1000(W)×800(H)mm
Conveyor Speed: 0.22 m/s
Conveyor Max Load: 200 kg
Single inspection dosage < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation <0.3µGY/H
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods Sealed oil bath with forced air/100％
IMAGE PERFORMANCE SYSTEM:
X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
COLOR QUALITY: 24 BIT REAL COLORS
EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT
SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT
HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY
LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
IMAGE STORING:REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS
MULTI-ENERGY FUNCTION:
MULTI-ENERGY COLOR: DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN
HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC
AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.
AUDIBLE & VISIBLE ALARM:GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION
OPERATING ENVIRONMENT:
Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.5 KW (Max)
Noise: <65DB
PACKING: 1PCS/CARTON
CARTON SIZE: 280CM*160CM*210CM
Weight/carton: 1000kgs
