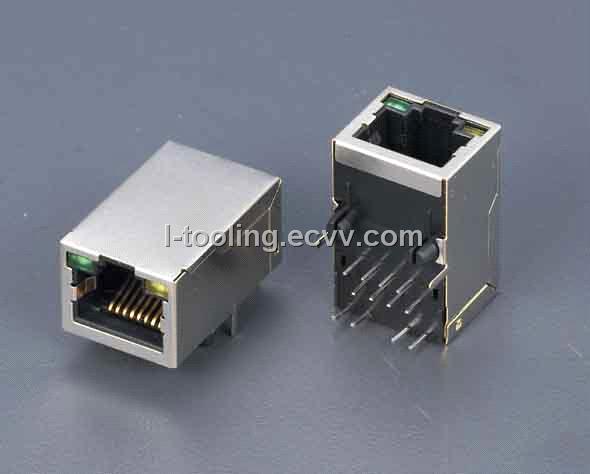

Rj45 Connectors with Transformer with LED,Sheiled

Shipping:	after recieved your deposit within 20days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Guangdong in China
Packaging Details:	In a standard export package

Specifications

1.RJ45 connectors with single port,1x2ports,1x4,1x6,1x8,2x6,2x8pors

2.Good quality & Competitive price & Fast Delivery

3.ISO9001,ROHS,SGS

4.OEM and ODM are all welcomed!

Our products are mainly used for Network switches router,hubs,LANMeters,XDSL Modem ,Base Station,telephone sets and etc.

Key Specifications/Special Features:

1. Housing material:PA6T filled with glassfiber

2. Shielded and Unshielded

3. Contact:Gold plating

4. High performance for high temperature endurable,maximum suppression etcs.

Properties:

For 10/100 Base-T and 1000 BaseTapplications,RoHS compliant,

Transformer inside LED option,PoE function option,Surge protection option.

PCB JACK SPECIFICATIONS STANDARD:

Electrical

1. Current rating: 1.5MPS

2. Voltage rating: 125V AC

3. Insulation resistance: ≥1000mΩ

4. Withstanding voltage: AC 1000V RMS 50Hz or 60Hz 1Min

5. Contact resistance: ≤30mΩ

Machanical

2. Retention strength: ≥76N

3. Durability≥750 TIMES

Material

1. Housing: PA6T or PBT filled with fiberglass

2. Inside chip: PBT filled with fiberglass

3. Shielding: 0.2mm thickness copper alloy with nickel plated.

4. Contact: Phosphor bronze, hard gold plated over nickel.

5. Gold plating: <3μ inch,3μ inch,6μ inch,15μ inch,30μ inch,50μ inch.

Working tempreture:

- 40 degrees centigrade to +70 degrees centigrade
