Shanghai ULI CNC Co., Ltd.
China Manufacturer with main products: CNC Router, Wood Engraver, Engraving Machine, Laser Machine |

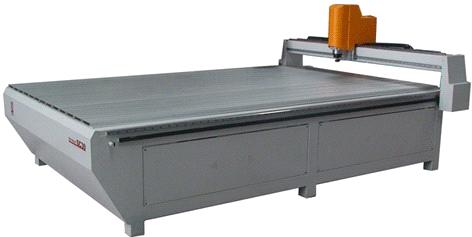

High Speed Woodworking CNC Router
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 10days |
| Payment Terms: | L/C |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|---|
| Packaging Details: | wooden box |
Specifications
2. Hige-speed CNC Router
Applicable Fields:
Advertising,Architectural model,Crafts and gifts,Mold making industry,Crafts and gifts,Mold making industy,Craftwork model,Wood industry,Signs and marks,Mertal board cutting,,Window decoration, Door board,Photo frame,Wave board.
SC series Features:
1.ULI .SC series enjoys the best price versus performance ratio in current market with high speed and high precision,unparalleled cnc machine:
2.SC series adopt whole steel structure which is made by high-precision process after destressing by high temperature,ensuring working accuracy and life time of the machine;
3.Engraving speed can reach up to 12m/min without sawtooth,flat and smooth back surface,fine outline;
4.Adopting high power precision water cooling spindle;
5.Adopting bouble step motor drive mode,ensuring stable movement;
6.High-precision AMT guideway and double rows ball bearing. High bearing capacity, life long service, stable operation.
7.X, Y axis adopt rack gear,Z axis adopts ball screw transmission;
8.Adopting advanced lathe processing technology ,making lathe bed durable;
9.Configuring independent automatic calibration system,ensuring operation precise and flexible;
10.Beam is made of cast iorn which can ensure high speed and low noise;
11.Purchasing eletronic components with CE criteria,ensuring long time working in a stable performance;
12.Accurate cutting and engraving with the advanced fonctions of resume power-off,continuing from break point,automatic calibration,path
simulation,showing process real time and modifying parameter during process.
|
Technical Parameters
|
SC13
|
SC18
|
SC25
|
SC30
|
SC50
|
|||||
|
Working Area
|
X Axis
|
1300mm
|
1300mm
|
1300mm
|
1500mm
|
2000mm
|
||||
|
Y Axis
|
1300mm
|
1800mm
|
2500mm
|
3000mm
|
5000mm
|
|||||
|
Z Axis
|
150mm
|
150mm
|
150mm
|
150mm
|
150mm
|
|||||
|
Table Size
|
X-Y
|
1400*1600mm
|
1400*2100mm
|
1400*2800mm
|
1600*3300mm
|
2100*5300mm
|
||||
|
Spindle motor
|
Spindle Power
|
2200w
|
2200w
|
3700w
|
3700w
|
3700w
|
||||
|
Spindle Rotary Speed
|
0-24000 r/min
|
|||||||||
|
Mechanical Structure
|
Work Table
|
Aluminum alloy table
|
||||||||
|
Transmission
|
X,Y axis adopt rack, Z axis adopts high precision ball screw
|
|||||||||
|
Accuracy
|
Processing Accuracy
|
0.02mm
|
||||||||
|
Repeat Positioning Accuracy
|
0.02mm
|
|||||||||
|
Speed
|
Max Moving Speed
|
25 m/min
|
||||||||
|
Max Working Speed
|
12 m/min
|
|||||||||
|
Software Support
|
ARTCAM, TYPE3, ARFACAM, MASTERCAM, PRO-E,AUTOCAD, etc
|
|||||||||
|
Drive System
|
Precision step motor
|
|||||||||
|
Control System
|
Ncstudio or ULI-DSP system
|
|||||||||
|
Tool Diameter
|
￠3.175/6/8/10/12.7 mm
|
|||||||||
|
Power Supply
|
AC 220 V/50Hz or 380 V
|
|||||||||
|
Net Weight
|
700kg
|
800kg
|
1000kg
|
1500kg
|
2000kg
|
|||||
