Henan Pengsheng Industrial Development Co., Ltd.
China Manufacturer with main products: PVC Insulated Power Cable, XLPE Insulated Power Cable, PVC Insulated Wire, ABC Cable, AAC ACSR conductor, Rubber Sheathed Cable, Control... |
CCS (Copper Clad Steel Wire)
| FOB Price: | 0.12 - 99.00 USD/Kilometer |
|---|---|
| Supply Ability: | 20 Kilometer per Week |
| Shipping: | 15days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
Related products from verified members
| Place of Origin: | Henan in China |
|---|---|
| Packaging Details: | Drum |
Specifications

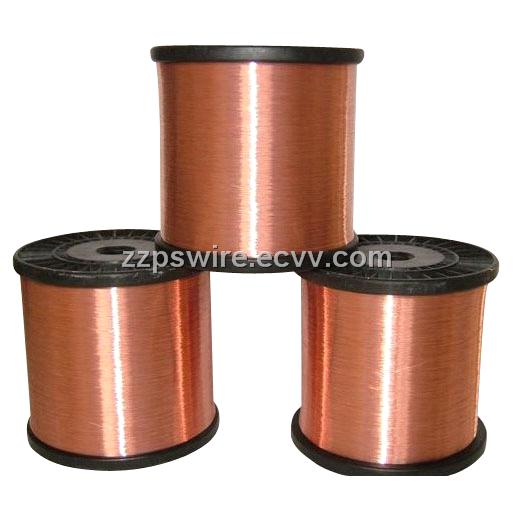

CCS Wire
Copper Clad Steel (CCS) Wire, a replacement for pure copper wire, is sorted into Flexible (A) and Hard (H). A combination of steel’ s high intensity and copper’ s high conductivity and resistance to corrosion, CCS wire has become a choice material for various industries such as communications, electric power, and electronics.
Adopting jointing craft to cover copper strip.
The quality and capability achieved correlative standard of USA.
Choosing high pure oxygen-free copper, the copper thickness is equality
The steel-cored adopting high-quality soft steel, and it also can choose different intension and grade.
The wire diameter of copper clad steel wire can be processed in 0.10mm-2.00mm according to customer' s requirement, it also can be processed into silvering copper clad steel wire, silvering copper clad steel wire.
The quality and capability achieved correlative standard of USA.
Choosing high pure oxygen-free copper, the copper thickness is equality
The steel-cored adopting high-quality soft steel, and it also can choose different intension and grade.
The wire diameter of copper clad steel wire can be processed in 0.10mm-2.00mm according to customer' s requirement, it also can be processed into silvering copper clad steel wire, silvering copper clad steel wire.
Application:
1. Inner conductor of terminal CATV coaxial cable
2. Conductive cord of user communication cable for double conductor telephones.
3. Plug-ins for electronic components.
4. Conductive cord of field wires.
5. Overhead system for power transmission and telephone lines.
6. Overhead-contact systems for railway and Light Rail Transit.
7. Braided shield wire of power cable.
8. Earthing pole for electrical power industry.
1. Inner conductor of terminal CATV coaxial cable
2. Conductive cord of user communication cable for double conductor telephones.
3. Plug-ins for electronic components.
4. Conductive cord of field wires.
5. Overhead system for power transmission and telephone lines.
6. Overhead-contact systems for railway and Light Rail Transit.
7. Braided shield wire of power cable.
8. Earthing pole for electrical power industry.
|
Model
|
Tensile Strength
|
Extensibility
|
|
CCS-21A
|
400
|
8.0
|
|
CCS-30A
|
380
|
8.0
|
|
CCS-40A
|
350
|
8.0
|
|
CCS-21H
|
1000
|
1.5
|
|
CCS-30H
|
760
|
1.5
|
|
CCS-40H
|
700
|
1.5
|
