Shanghai Ciphy Industry Co., Ltd.
China Manufacturer with main products: Ball Valve, Check Valve, Gate Valve, Globe Valve |

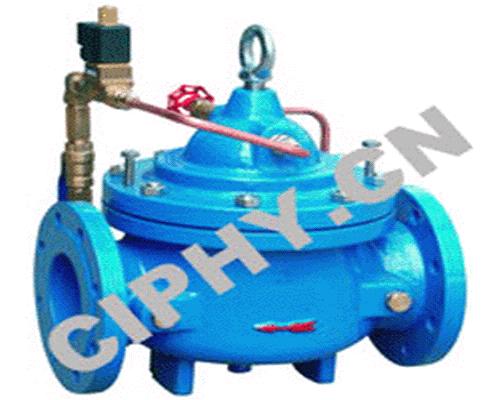

Electric Hydraulic Control Valve
| Supply Ability: | 1,000 Piece/Pieces per Week |
|---|---|
| Shipping: | WITHIN THREE DAYS |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|---|
| Packaging Details: | wooden |
Specifications
Design: Factory STD;
Manufacture:C;
Flange: ANSI B16.5, DIN2532/2533,BS 4504;
Bolt Cover; Soft Seal;
Material and Working Temp.:
Cast Iron and Ductile Iron: 0 C-80 C(32 F-176 F)
Buna-N: 0 C-71 C(160 F) Maximum
EPDM: 0 C-80 C(176 F) Maximum
PRESSURE RATING :PN6-PN25
SIZE :DN20-DN600
Manufacture:C;
Flange: ANSI B16.5, DIN2532/2533,BS 4504;
Bolt Cover; Soft Seal;
Material and Working Temp.:
Cast Iron and Ductile Iron: 0 C-80 C(32 F-176 F)
Buna-N: 0 C-71 C(160 F) Maximum
EPDM: 0 C-80 C(176 F) Maximum
PRESSURE RATING :PN6-PN25
SIZE :DN20-DN600
MAIN VALVE:
PARTS AND MATERIAL:
1.Body ( ASTM A126-B/A536,WCB,CF8,CF8M )
2.SEAT ( Alloy Brass/Stainless Steel )
3.STEM ( 2CR13/SS304/SS316 )
4.DISC PLATE ( ASTM A126-B/A536,WCB,CF8,CF8M )
5.O-RING ( NBR/EPDM )
6.SEAL RING ( NBR/EPDM )
7.DISC ( ASTM A126-B/A536,WCB,CF8,CF8M )
8.DIAPHRAGM ( NBR /EPDM )
9.PLATE ( ASTM A126-B/A536,WCB,CF8,CF8M )
10.NVT ( Carbon Steel/Stainless Steel )
11.CAP ( ASTM A126-B/A536,WCB,CF8,CF8M )
12.SPRING ( Stainless Steel )
13.O-RING ( Alloy Brass/Stainless Steel )
14.BOLT ( Carbon Steel/Stainless Steel )
15.NUT ( Carbon Steel/Stainless Steel )
PARTS AND MATERIAL
1.Main Valve ( ASTM A216-B, A536, WCB, CF8, CF8M )
2.Control Pipeline ( Rose Copper C11000 )
3.Strainer ( Brass ASTME C27400 )
4.Needle valve ( Brass ASTME C27400 )
5.Guide valve ( Brass ASTME C27400 )
6.Pressure Gauge
7.Ball valve ( Brass ASTME C27400 )
