Ele Technology (Shenzhen) Limited
China Manufacturer with main products: CCTV System, DVR Recorder, DVR, CCTV Camera, CCD Camera, Security Camera |

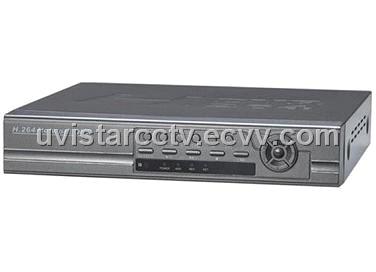

4 Ch DVR Recorder
| FOB Price: | 50.00 - 75.00 USD/Set |
|---|---|
| Shipping: | 5 to 7 days |
| Payment Terms: | L/C, T/T(Bank Transfer), D/A, D/P, Western Union, PayPal |
Related products from verified members
| Place of Origin: | Shenzhen in China |
|---|
Specifications
|
Model
|
DH1804
|
|
|
DVR Type
|
H.264 4CH Stand alone DVR
|
|
|
System
|
Main Processor
|
High performance embedded microprocessor
|
|
Operating System
|
Embedded LINUX
|
|
|
System Resources
|
Pentaplex function:Live Recording Playback Backup and Remote access
|
|
|
Control Mode
|
Front panel USB mouse IR remote control Keyboard Network
|
|
|
Video
|
Input
|
4 channel BNC(1.0Vp-p,75)
|
|
Standard
|
NTSC 120F/S PAL 100F/S
|
|
|
Output
|
1 TV BNC(1.0Vp-p 75 ) 1VGA
|
|
|
Audio
|
Input
|
1 channel BNC(200-2800mV 30K)
|
|
Output
|
1 channel BNC(200-3000mV 5K)
|
|
|
Display
|
Display Split
|
1/4
|
|
Resolution
|
1024*768 800*600
|
|
|
Tour Display
|
Support
|
|
|
OSD
|
Camera title time video loss motion detection recording
|
|
|
Recording
|
V/A Compression
|
H.264/G711
|
|
Image Resolution
|
D1 HD1 CIF
|
|
|
Encoding Speed
|
Main Stream:CIF(1-25/30F/S) HD1(1-12/15F/S) D1(1-6F/S),
Extra Stream:QCIF(1-25/30fps) |
|
|
Bit Rate
|
32-2048Kb/s
|
|
|
Image Quality
|
1-6 level(level 6 is the best VBR effectively)
|
|
|
Recording Mode
|
Manual schedule Video detection Video loss
|
|
|
Recording Priority
|
Manual>Motion detection>Regular
|
|
|
Recording Interval
|
5-120min.(default:60 min.)
|
|
|
Video
Detection |
Trigger Events
|
Recording PTZ movement E-mail
|
|
Motion Detection
|
Zones:396(22*18) Sensitivity:1-5(level 5 is highest)
|
|
|
Video Loss
|
Support
|
|
|
Playback
& Backup |
Playback Channel
|
1
|
|
Playback Speed
|
CIF(1-30FPS/CH), HD1(1-15FPS/CH), D1(1-6FPS/CH)
|
|
|
Backup Mode
|
Time/Date Motion Detection
|
|
|
Playback Functions
|
Play Pause Stop Fast play Slow play Full screen Backup selection
|
|
|
Search Mode
|
Flash drive/USB HDD/USB CD/DVD-RW/Network download
|
|
|
Network
|
Interface
|
RJ-45 port(10/100M)
|
|
Network Functions
|
TCP/IP UDP DHCP DNS IP Filter PPPOE DDNS Email uPNP.
|
|
|
Remote Operation
|
Monitor PTZ control Playback System setting File download Log information
|
|
|
Hard Disk
|
Hard Disk
|
1 SATA port Max 2TB HDD supported
|
|
Space Occupation
|
Audio: 28.8MB/H Video:56-900MB/H
|
|
|
HDD Management
|
Hard disk hibernation technology HDD faulty alarm
|
|
|
Auxiliary
Interface |
USB Interface
|
2 ports 1 for mouse control 1 for backup
|
|
RS 485
|
PTZ control
|
|
|
Environment
|
Power Supply
|
AC 100-240V 50/60Hz
|
|
Power Consumption
|
25W
|
|
|
Environment
|
-10°c to +55°c /10-90%RH/86-106kpa
|
|
|
Product Size
|
260X250X50mm
|
|
