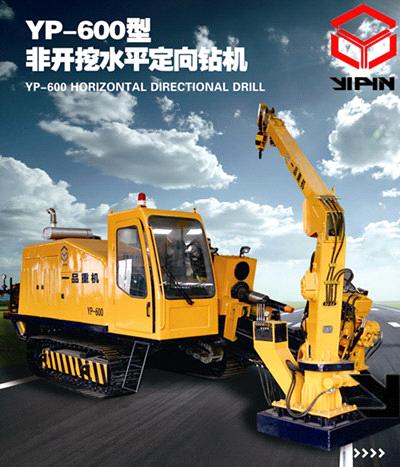

Horizontal Directional Driller with 600ton

Supply Ability:	10 Set/Sets per Month
Shipping:	15days
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

Inquiry Now

Rotary Drilling Rig

Price:

Min. Order:
Truck Mounted Directional / Reverse Drilling Ri...

Price:10,500.00-10,600.00 USD/Set

Min. Order:1 Set
Cheap Price & Good Condition Used Kobelco R...

Price:50,000.00-55,000.00 USD/Set

Min. Order:1 Set

Place of Origin:	Hunan in China
Packaging Details:	Container

Specifications

YP-600ton Horizontal directional driller technology parameter

Specification	Unit	YP-60
Engine Power	KW	239
Spindle Speed	r/min	0～110
Mud Pump Flow	L/min	500
Max. Torque	N·m	26000
Max. Pullack Force	KN	600
Max. Thrust Force	KN	600
Specification of Drill Stem	mm	Φ89×4500
Entry Drill Angle	°	10～21
Dimension (L×W×L)	mm	8300×2650×3000
Max. Pressure of Mud	Mpa	10
Max. Pull&Push Speed of Engine	m/min	27
Max. Diameter of Expending Aperture	mm	1500 (According to soil property)
Max. Distence of Construction	m	800 (According to soil property
Truck Mounted Crane	t	2
Caterpiller working Speed	Km/h	2.5
Overall Weight	T	21
