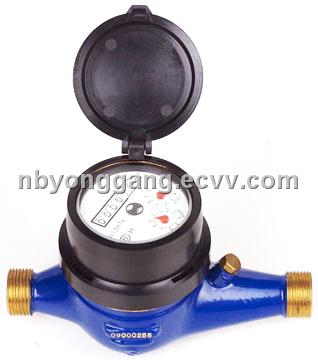

Multi Jet Dry Type Water Meter

Supply Ability:	50,000 Piece/Pieces per Month
Shipping:	24000pcs per month
Payment Terms:	L/C, T/T(Bank Transfer), D/P, Western Union

Inquiry Now

Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	Packing in export carton

Specifications

Description:

Feature:
1.Dry-dial,Magnetic drive,Resistance to exterior magnet interference
2.Multi-jet
3.Selected high quality materials for steady & reliable characteristic
4.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
5.Measuring accuracy conform to ISO 4064 class B Standard
6.Universal use.Easy for interchange & mainteDescription:
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit,passing through the pipeline.

Working condition:
Cold water temperature: ≤40℃ , Hot water temperature: ≤90℃
Water pressure:≤1Mpa

Main technical data:

Meter Size (mm)	Class class	Overload Flow	Nominal Flow	Transitional Flow	Min Flow	Min Reading	Max Reading
		m3/h				m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70
32	A	12	6	600	240	0.0001	99999
	B			480	120
40	A	20	10	1000	400	0.0001	99999
	B			800	200
50	A	30	15	1500	600	0.0001	99999
	B			1200	300

Dimensions and weight:

Meter Size mm	Length L	Width B	Height H	Connecting Thread	Weight KG
Meter Size mm	mm			Connecting Thread D	Weight KG
15	165	90	104	G 3/4B	1.3
20	190/195	99	106	G 1 B	1.5
25	260/225	103	114	G11/4B	2.3/2.1
32	260/235	104	117	G11/2B	2.5/2.4
40	300/245	124	147	G 2B	5.0/4.5
50	300	125	155	G2 1/2B	7.2
50	280	165	175	Flange connecting onform toGB4216.4-84 D=165 D1=125	11.5
