ZH Series Flange Welding Line

FOB Price:	80,000.00 - 120,000.00 USD/Set
Supply Ability:	10 Set/Sets per Month
Shipping:	60-90 days
Payment Terms:	L/C, T/T(Bank Transfer), pre-payment

In Stock

Inquiry Now

Place of Origin:	Shandong in China
Packaging Details:	standard exporting pacckage

Specifications

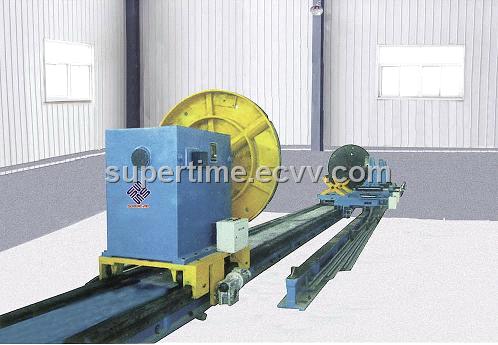

This machine is composed of main & idle chuck, branch pipe assembling unit (equipped with two or more sets by user defined) & guiding table.

Product feature:

▲The movement of main & idle-working table and rotation of main & idle-chuck all adopt motor driving and digital display (or CNC control)

▲The machine is used for positioning, assembling and welding between steel pipe and flange, and between branch pipe and branch flange.

▲Simple operation, accurate and easy positioning, high working efficiency, small working area, save loading time.

▲It is controlled by PLC system and HI, easy operation and stable operation.

▲The machine should be driven by motor, with NC or CNC display, simple operation, and accurate welding angle of branch pipe.

▲Equipped with two or more sets of branch pipe assembling by user defined.

Specification:

Model	ZH1013	ZH1313	ZH1613
Size of main working table(mm)	16500×800×250	16500×800×250	16500×1500×320
Flange diameter of main & idle clamping chuck (mm)	Φ250-Φ1000	Φ250-Φ1300	Φ250-Φ1600
Center height of chuck (mm)	800	800	1200
Size of vice-working table (mm)	14000×200×250	14000×200×250	14000×200×250
Length of steel pipe (m)	13	13	13
Size of fixed flange on the vice-working table (mm)	Φ150-Φ500	Φ150-Φ500	Φ150-Φ500
Center height on vice-working table (mm)	800	800	1200
Rotary angle on vice-working table	±90°	±90°	±90°
Movement speed of main & vice-working table (m/min)	3	3	3
Total power of motor (kW)	14	14	15
