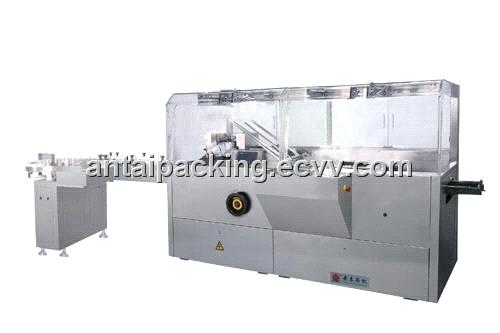

Automatic Cartoning Machine/Packing Machine (ANTZ-100P)
| Supply Ability: | 15 Set/Sets per Month |
|---|---|
| Shipping: | 65 days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Export Wooden Case |
Specifications
Automatic Bottle Machine
Automatic Cartoning Machine/Packing Machine Application
Automatic Cartoning Machine/Packing Machine Application
This machine is suitable for cardboard case packaging of bottles (round, square), cosmetic, food and so on. It consists of direction folding (1-4 folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically. It can be added hot-glue machine.
Automatic Cartoning Machine Features
1. International famous brand of electric components such for PLC touch screen, frequency inverters etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting.
4. Automatic detection and rejection device for lacking of blisters/goods or leaflets.
5. Stability performance with lubricate setting and controlling.
Automatic Cartoning Machine Main Technical Parameters
|
Item
|
|
Parameters
|
|
Encasing speed
|
|
30-100box/min
|
|
box
|
Quality requirement
|
250-350g/m2
|
|
Dimension range (L x W x H)
|
(65-180)mm x (30-85)mm x (15-50)mm
|
|
|
Leaflet
|
Quality requirement
|
60-70g/m2
|
|
Unfolded leaflet specification
|
(80-250)mm x ( 90-170)mm
|
|
|
Folded leaflet specification(1-4)
|
(90-170)mm x (25-40)mm
|
|
|
Compressed air
|
Working pressure
|
≥0.6mpa
|
|
Air consumption
|
120-160L/min
|
|
|
Power supply
|
220v 50hz
|
|
|
motor power
|
0.75kw
|
|
|
Machine dimension
|
3100 x 1100 x 1800(mm)
|
|
|
Machine weight
|
1400kg
|
|
