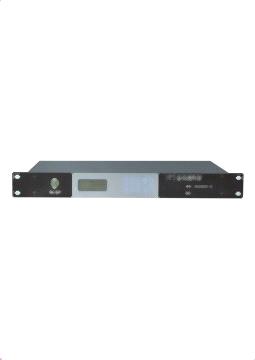

Vehicle-mountable Receiver used for SARFT

Shipping:	5-12 days
Payment Terms:	T/T(Bank Transfer), Western Union

Inquiry Now

Related products from verified members

CE Passed Full High Sliding Gate Turnstile (CPW...

Price:1.00 USD/Piece

Min. Order:1 Piece
Lightning Conductor

Price:500.00-2,000.00 USD/Piece

Min. Order:1 Piece
KOUDX Absorbents & Spill Kits

Price:30.00-40.00 USD/Piece

Min. Order:1 Piece
Traveling Block Protective System for Workover ...

Price:

Min. Order:
Buffer Tank Conventional or Concave Bursting Di...

Price:100.00 USD/Piece

Min. Order:1 Piece
GMDSS EPRIB

Price:

Min. Order:1 Set
Speed Dome Controller

Price:45.00-50.00 USD/Piece

Min. Order:5 Pieces

Product Details

Place of Origin:	Shenzhen in China

Specifications

Application Ranges:
TV, Live Broadcast for large-scale activities & other industries, it makes convenient of camera work by overcoming a must of traditional cable connection between broadcasting car & TV.

Application Modes:
A: Long-distance high-definition image transmission: 1.car---car 2. Ship---ship 3.car/ship/aircraft---fixed pointB: Long-distance image transmission relay, reaching 110km in visible distance with help of omnidirectional high-gain antenna.

Equipment Features:

1. Stably transmits A/V signals while moving in high-speed & interfered by multi-path2. High-quality digital video encoding & decoding videos & DVD picture3. System can transmit in complex environment4. Excellent anti-jamming performance in complex electromagnetic environment5. Adjustable Frequency & bandwidth

6. with space diversity receptivity7. Strict encryption8. Standard rack-mountable for easy installation

9. Real-time Electromagnetic Scanning function, with LCD display

10. Frequency applicable in wide ranges

Technical Parameters:
1. Receiving frequency: 300MHz~5.8G, adjustable

2. Video output: PAL/NTSC

3. Audio output: 2 channels (Stereo)

4. Video compression standard: MPEG-2, MPEG-4 @ML4:2:2 compatible with 4:2:0

5. Video rate: 25fps

6. Image definition: >= 720* 620

7. Receiving Sensibility: -106dBm

8. One SD-SDI interface ()

9. One HD-SDI interface (optional)

10. One composite video signal

11. Power supply: AC220V

12. One ASI interface

13. Shape: 1U, 19 inch

14. Power indication, infrared receiver

15. Net Weight: 2.0kg

16. Signal strength & quality can be displayed on LCD

17. Frequency, channel bandwith & guard interval adjustable (display on LCD)

18. RJ45 Ethernet interface (optional)

19. Two-way voice (optional)

20. Data interface (optional)

21. Spectrum scanning function for the receiver

22. TALLY system (optional)

23. Size: 480mm*220mm*45mm (L*W*H)

24. Working conditions: temperature:-30℃-70℃, Relative Humidity: 90%

25. Storage conditions: temperature:-40℃~80℃, Relative Humidity: 90%
