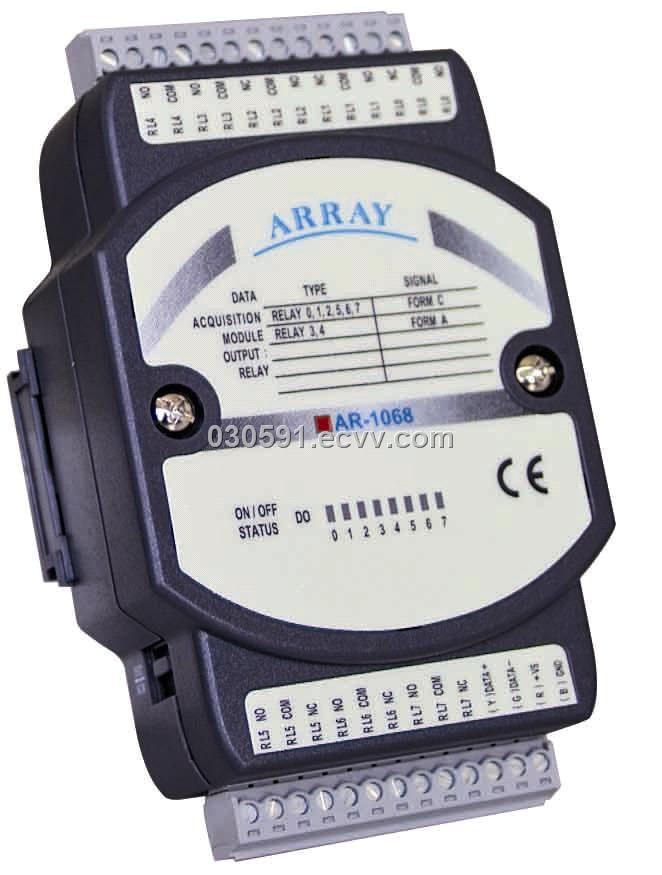

AR-1057 / 1058 / 1068 / 1069 Features
1.Din-Rai
2.Operating Temperatures : -20 ~ +75
3.Input Power : +10VDC ~ +30VDC
4.Isolation P rotection ; 3000VDC
5.Protocol : Modbus-RTU / Modbus-ASCII
6.Output LED Indicator
AR-1057 / 1058 / 1068 / 1069 Introduction
The AR series is a family of network data acquisition and control modules that support Modbus RTU and Modbus ASCII protocols. AR series can easily communicate with most popular SCADA/ HMI software and PLC

AR-1057 / 1058 / 1068 / 1069 Pin Assignments

Item	AR-1057/1058	AR-1068/1069	Item	AR-1057/1058	AR-1068	AR-1069
1	DO 7~9COM	RL5 NO	14	DO0~2 COM	RL0 NO	RL0 NO
2	DO 7	RL5 COM	15	DO 0	RL0 COM	RL0 COM
3	DO 8	RL5 NC	16	DO 1	RL0 NC	NC
4	DO 9	RL6 NO	17	DO 2	RL1 NO	RL1 NO
5	DO 7~9 GND	RL16 COM	18	DO 0~2 GND	RL1 COM	RL1 COM
6	DO 10~11 COM	RL6 NC	19	DO3~4 COM	RL1 NC	NC
7	DO 10	RL7 NO	20	DO 3	RL2 NO	RL2 NO
8	DO 11	RL7 COM	21	DO 4	RL2 COM	RL2 COM
9	DO 10~11 GND	RL7 NC	22	DO 3~4 GND	RL2 NC	RL3 NO
10	(Y)DATA+	(Y)DATA+	23	DO 5~6 COM	RL3 COM	RL3 COM
11	(G)DATA-	(G)DATA-	24	DO 5	RL3 NO	NC
12	(R)+VS	(R)+VS	25	DO 6	RL4 COM	RL4 NO
13	(B)GND	(B)GND	26	DO 5~6 GND	RL4 NO	RL4 COM

AR-1057 / 1058 / 1068 / 1069 Specifications

Interface
	AR 1057	AR1058	AR1068	AR1069
Output Channels	12	12	8	8
Connectors	2X plug-in terminal blocks(#14~28AWG)
Power Consumption	0.96W@24VDC	0.96W@24VDC	1.68W@24VDC	2.88W@24VDC
Supported Protocols	Modbus-RTU/Modbus-ASCII
Output Type	Souce	Sink	Relay	Power Relay
Output Isolation Voltage	3000VDC
LED Indicators	Yes
Output Rating(max)	10-35VDC/1A	40VDC/200mA(Open Collector)	0.5A@120VDC/1A@30V	5A@250V/5A@30VDC
Chanel Type	Digital	Digital	6X from C/2X from A	3X from C/5X from A
Output off Time	<1ms	<1ms	<8ms	<8ms
Output on Time	<1ms	<1ms	<7ms	<7ms
Power on Set Value	Yes(Power on output value)
Communication fail set value	Yes(Force the DO channels to safety status when communication in time-out and over pre-defined period)
Casing
Mechanical	Plastic
Flammability	Fire Retardant Materials
Dimensions(WHD)	118.2mm76.4mm38.5mm
Installation	DIN-Rail
Environment
Operating Temperature	-20 ~ +75
Storage Temperature	-25 ~ +80
Humidity	10-90%RH, no-condensing
