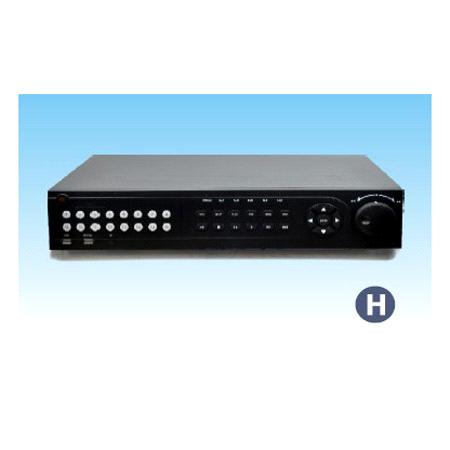

DVR9804/9808/9816-H D1 High End 98 Series (DVR9804/9808/9816-T/H) Network Digital Video Recorder
| Supply Ability: | 40,000 Set/Sets per Week |
|---|---|
| Shipping: | 1-3 working day |
| Payment Terms: | L/C, T/T(Bank Transfer), D/A, D/P, Western Union, PayPal |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | standard export packing |
Specifications
Product Overview:
9804/9808/9816-H network DVR Support Local record and playback, triple encode for remote network monitoring, backup, configuration; Supports motion detection alarm, I/O alarm, supports PTZ control, Supports USB for mouse operation and USB for date backup.
Product Introduction
Main Features:
VGA output resolution is up to 1280*1024(maximum)
Supports local preview, storage and playback
Supports digital zooming function when preview and playback
Supports NTP, SADP protocol
2U case design, supports maximum 8pcs HDD
New tooling design, friendly GUI
Video compression features;
4/8/16 CH support full real-time D1 recording
4CH DVR supports 4CH full D1 playbacks simultaneously
8CH DVR supports 1CH full D1 playback simultaneously
16CH DVR supports 8CH full D1 playbacks simultaneously
Performance Parameter
|
User Interface
|
Graphic User Interface (OSD Menu)
|
|
Video Input
|
4/8/16 channel composite input with 1.0Vp-p,75Ω NBC
|
|
Video Output
|
1/2 channel composite input with 1.0Vp-p,75Ω NBC
|
|
Display
|
1/4/8/16 optional, PIP function
|
|
Video Standard
|
PAL 704*576 25fps CCIR625
|
|
NTSC 720*480 30fps CCIR525
|
|
|
Audio Input
|
4/8/16 channel 600Ω RCA
|
|
Audio Output
|
1 channel 600Ω RCA
|
|
Audio Recording
|
simultaneously A/V
|
|
Video Compression
|
H.264, VBR/CBR
|
|
Video Bit Rate
|
D1: 512~1024Kbps (Optional)
|
|
Alarm In/Out
|
4/8/16 for I/O alarm input/1 alarm output
|
|
Email Alarm
|
Supports Alarm Trigger, Snapshot to email
|
|
Serial
|
RS-485*1/RS-232*1
|
|
Lan
|
1(RJ-45) 10M/100M, Ethernet connector
|
|
Motion Detection Area Setting
|
PAL 13*10(130), NSTC 13*8(104);sensibility,4 levels available
|
|
Mobile Phone Live View
|
Supports GPRS/CDMA/EDGE/3G
|
