Specifications

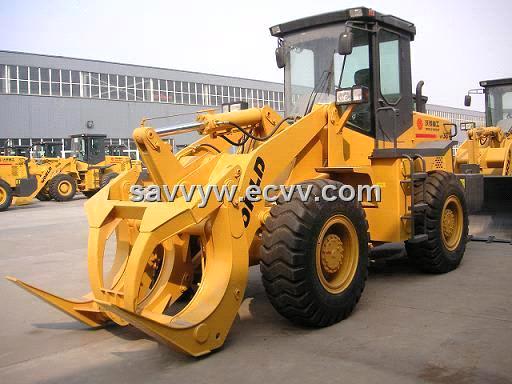

3 ton wheel loader W136, 3200kg rated load, 1.8 or 2cbmbucket capacity, Cummins engine, planet type transmission, self-made cabin, frame, arm and bucket, with air conditioner.
|
Items
|
Models: W136 II
|
|
Bucket Capacity (m3)
|
1.8 or 2.2
|
|
Rated Load (kg)
|
3200
|
|
Max. Breakout Force (kN)
|
97
|
|
Max. Traction (kN)
|
100
|
|
Forward Speed 1st (km/h)
|
0-12
|
|
Forward Speed 2nd (km/h)
|
0-40
|
|
Reverse Speed (km/h)
|
0-17
|
|
Max. Dumping Height (mm)
|
3060±50
|
|
Max. Dumping Reach (mm)
|
1008±50
|
|
Min. Turning Radius (mm)
|
5376±50
|
|
Min. Clearance Over Ground (mm)
|
360±20
|
|
Wheel Base (mm)
|
2750
|
|
Tread Width (mm)
|
1800±10
|
|
Total Hydraulic Cycle Time (s)
|
10.3
|
|
Full Bucket Lifting Time (s)
|
5.6
|
|
Overall Dimensions (mm)
|
L:6970xW:2450xH:3228
|
|
Operating Weight (kg)
|
12440
|
|
Diesel Engine
|
|
|
Brand
|
Cummins
|
|
Type
|
Direct injection, water cooling, 4 strokes
|
|
Rated Output (kw)
|
97
|
|
Rated Speed (rpm)
|
2200
|
|
Max. Torque (N.m)
|
560
|
|
Transmission
|
|
|
Type
|
Planet type
|
|
Rated Input Speed (rpm)
|
2200
|
|
Transaxle & Tire
|
|
|
Rear Axle Oscillation
|
Center oscillation
|
|
Oscillating Angle Of Rear Axle (°)
|
12
|
|
Pressure Of Tire (MPa)
|
0.28-0.32
|
|
Working Hydraulic System
|
|
|
Working Pump Type
|
Gear pump
|
|
Working Pressure (MPa)
|
16
|
|
Lifting Cylinder Bore x Stroke (mm)
|
125x816
|
|
Tilting Cylinder Bore x Stroke (mm)
|
140x553
|
|
Steering System
|
|
|
Steering Pump Type
|
CBY2050 (reverse)
|
|
Working Pressure (MPa)
|
10
|
|
Steering Cylinder Bore x Stroke (mm)
|
80x340
|
|
Max. Steering Angle (°)
|
36
|
