Place of Origin:	Guangdong in China
Packaging Details:	white box/gift box/OEM

Specifications

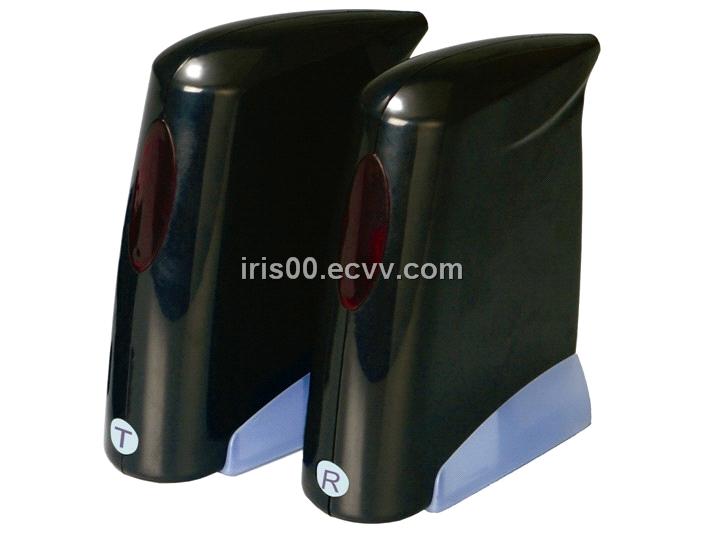

Production: 5.8GHz AV Sender Model No.: 503T/503R
Audio/Video System----503S
Features:
1. Mini size with modern design 2. With 5.8GHz Frequency 3. With 8 selectable channels(Dip Switch) 4. Transmit the crisp A/V signal with radio frequency 5. External Omni-directional antenna 6. Remote control the A/V source with IR extender 7. Compatible with Camcorder or CMOS camera application 8. NTSC/PAL video format available

Specifications:

ITEM	503T	503R
5.8GHz antenna	Internal omni-directional antenna	Internal omni-directional antenna
433MHz antenna	External Omni-directional antenna	External Omni-directional antenna
Transmit power	23 dBm(Typical)	-
Sensitivity	-	-86dBm type
Frequency band	5.725GHz~5.865GHz	5.725GHz~5.865GHz
Channel Customer	8 selectable channels	8 selectable channels
Input format	Available in NTSC or PAL	-
Output format	-	Available in NTSC or PAL
Video input level	1 Vp-p@75Ω	-
Audio input level	1 Vp-p@600Ω	-
Video output level	-	1 Vp-p@75Ω
Audio output level	-	1 Vp-p@600Ω
Input / output Connector	MINI jack	MINI jack
Operating condition	Indoor usage recommend	Indoor usage recommend
Remote control frequency	433.92MHz	433.92MHz
IR carrier frequency	32~38KHz	32~38KHz
Power Consumption	12Volt DC,500mA(Maximum)	12Volt DC,500mA(Maximum)
Operating Temperature	-10 ~ +60	-10 ~ +60
Dimension/Weight	201311 cm / 0.94 KG
Carton Size/ Quantity	4641.528 cm / 16 PCS
