Product Details

Place of Origin:	Beijing in China
Packaging Details:	Standard container,in Bulk, Nude packs.

Specifications

Product Name:
ball mill, rod mill, bar mill, Steel Ball Coal-grinding Machine, mining machinery, mining machine, mineral machine

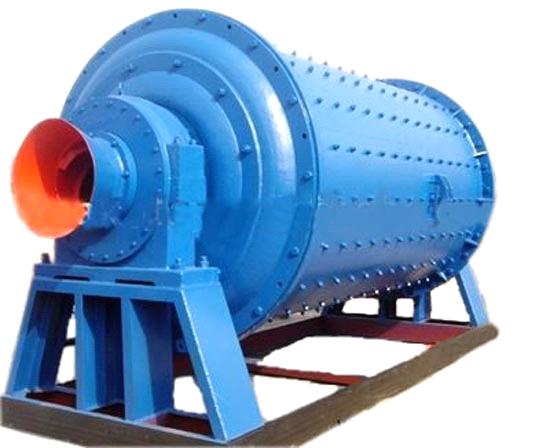

Description of Steel Ball Coal-grinding Machine:
Steel Ball Coal-grinding Machine is widely used in thermal power plants, steel mills processing of solid materials, coal, is the main equipment of Pulverizing system. Used in metallurgy, hydropower, mining, chemical, refractory, building and other industrial sectors, grind various hardness ores and other grindability materials.

The main features of Steel Ball Coal-grinding Machine:
(1)Smooth operation
(2)reliable performance
(3)greatly enhance the output

Export country of the Steel Ball Coal-grinding Machine:
India, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, Australia, the Middle East and other countries and areas.

Sort of the Steel Ball Coal-grinding Machine:
Wet lattice type ball mill, dry lattice type ball mill, overflow type ball mill, wet type rod mill, total of 29 kinds of specifications.

Main Technical Parameters of the Steel Ball Coal-grinding Machine:

Type		Φ1700x2500	Φ2200x3300	Φ2500x3900		Φ2900x4700
Cylinder	Diameter	1700	2200	2500		2900
	Length	2500	3300	3900		4700
	Abrasive body load	7.5	14	22		35
	Rotary speed	24.5	22	20		18.6
Capacity		4	6	10		16
Motor	Type	JR116-6	JS137-8	JSQ1410-8	JSQ158-8	JSQ1510-8	JSQ1512-6
	Power	95	170	370	380	625	570
	Voltage	220/380	3000/380	3000	6000	3000	6000
Dimensions		6998X3700X2680	7680X4389X3950	7770X5266X4024		8930X6179X4440
Equipment weight (excluding motor)		20.171 t	40.300 t	59.100 t		76.550 t

Type		Φ3200x4700		Φ3200x9500	Φ3500x6000
Cylinder	Diameter	3200		3200	3500
	Length	4700		9500	6000
	Abrasive body load	44		49.5	64
	Rotary speed	18.46		17	17.7	17.57
Capacity		20		28	30
Motor	Type	JS1510-6	JS158-6	YR118/49-8	JS158-6 JS1410-6	Synchronous motor
	Power	650	680	800	2x650 / 2x680	1000
	Voltage	6000	3000	6000	6000 / 3000	6000
Dimensions		12820X6780X5244		18490X6980X5244	14805X8927X5694
Equipment weight (excluding motor)		112.130 t		118.130 t	139 t	150 t
