Xiamen Xiaxin Roll Forming Machine Co., Ltd.
China Manufacturer with main products: Forming Machine, Roll Forming, Roll Forming Machine, c Purlin Forming Machine, Floor Decking Forming Machine, Wall Panel Forming Machine,... |

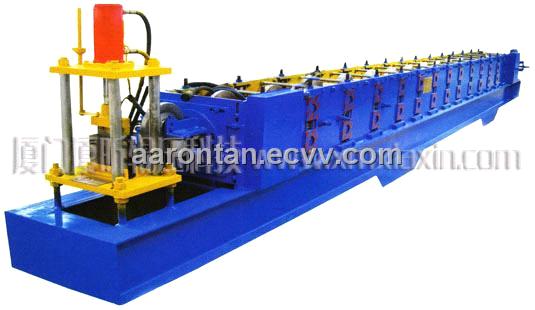

Guide Rail Panel Forming Machine
| FOB Price: | 3,000.00 - 35,000.00 USD/Set |
|---|---|
| Supply Ability: | 40 Set/Sets per Month |
| Shipping: | 45 days after receiving 30% deposit |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Fujian in China |
|---|---|
| Packaging Details: | 1. Tighten to container with steel wire rope 2. Main forming machine and un-coiler is naked |
Specifications
| Technical Parameters (some depend on the final design) | ||
| 1 | Style | YX32-50/60/70/80 |
| 2 | Machine dimension (mm) | 6000*850*1800 |
| 3 | Total wight (Kg) | 3500 |
| 4 | Forming steps | 18 |
| 5 | Forming speed (m/min) | Approx.12 |
| 6 | Hydraulic station power(Kw) | 5.5 |
| 7 | Diameter of shaft (mm) | 45 |
| 8 | Electric condition | 380V/3Phase/ 50HZ |
| 9 | Power for hydraulic decoiler(Kw) | 2.5 and 3 |
| 10 | Decoiler max capacity (Kgs) | 5000 |
| 11 | Control system | PLC |
| 12 | Raw material thickness (mm) | 0.4-0.7 |
| 13 | Effective width(mm) | 50/60/70/80 |
| 14 | Material width(mm) | 84 |
| 15 | Main application | guide rail |
| 16 | Serial number | M2011006 |
| 1. Cutter Material:Cr12 mould steel with heat treatment | ||||
| 2. Shaft Material :Cr12 mould steel with heat treatment | ||||
| 3. Roller Material:40Gr mould steel with heat treatment,hard Chrome Coated | ||||
| 4. Have fashionable,nice appearance and durable | ||||
| 5. Delivery time:30% deposit,and balance before delivery | ||||
| 6. Widely used in various industral factory,villa building,civilian building,warehouse,etc | ||||
| 7. We can manufacture many kinds of panels to satisfy our customer, you can also provided the drawings what you want or the samples and then we will design the project for you accordingly |
After-sale Service:
1. In correct operation & maintaining, one year guarantee for the machine after leaving our factory.
2. If installation is needed, we will dispatch our technician to your company to assist install the machine freely, you need to pay for the roundtrip air ticket and the local accommodation.
