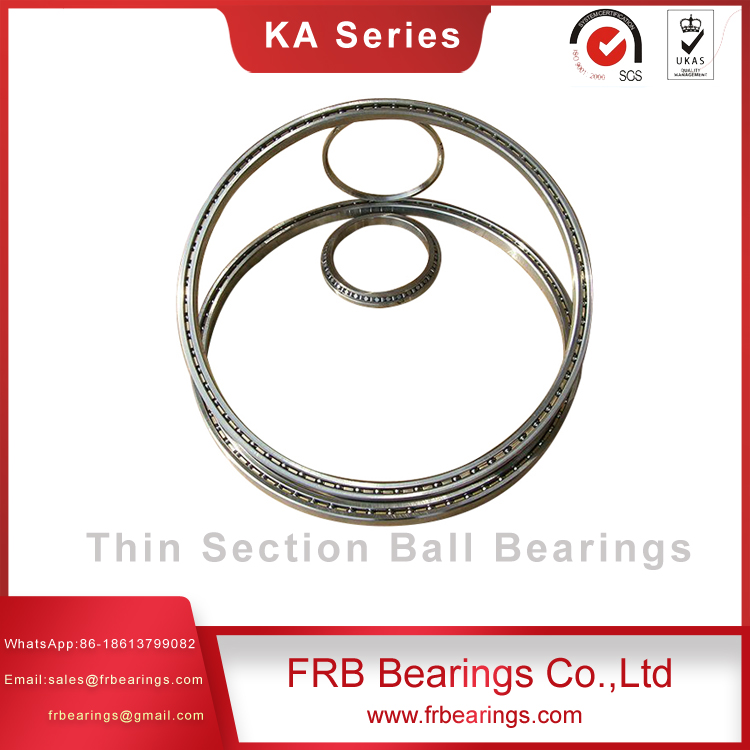

4-Point Contact Thin Section, X-Type -- KA025XP0

Supply Ability:	100 Piece(s) per Month
Shipping:	30days
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Industrial packaging

Specifications

4Point Contact Thin Section XType KA025XP0
this C-Type series unsealed thin section ball bearing is made from 52100 steel and utilizes a snap-over cage design made of brass or composite material. this bearing is designed for applications with primarily radial loads, and is manufactured to ABEC 1F precision tolerances.

Specifications
Product Category:Ball Bearings

Primary Bearing Category:Angular Contact Ball Bearing

Bearing Design
Type:Four Point Contact
Application:Aerospace; Airframe / Aircraft Control; Instrument / Miniature; Medical / Dental; Military; Radar, Scanning Equipment, etc

Dimensions
Design Units:Inch
Bore:2.5000 inch (63.500 mm)
Outside Diameter:3.0000 inch (76.200 mm)
Outer Ring Width:0.2500 inch (6.350 mm)
Overall Width:0.2500 inch (6.350 mm)

Load Ratings
Static Axial:1680 lbs (762 kg)
Static Radial:560 lbs (254 kg)
Dynamic Axial:1320 lbs (599 kg)
Dynamic Radial:530 lbs (240 kg)

Speed Ratings:Oil 4360 rpm

Material / Plating:Stainless Steel (optional feature); Ceramic Races (optional feature); Corrosion Resistant (optional feature)

Rolling Element:Steel; Stainless Steel (optional feature); Ceramic Balls (optional feature)

Seals / Shields:None (Open Bearing)

Bearing Class:ABEC1 / Class 0 / P0; ABEC3 / Class 6 / P6 (optional feature); ABEC 5 / Class 5 / P5 (optional feature); ABEC 7 / Class 4 / P4 (optional feature)

Lubrication:Prelubricated; Solid Lubrication (optional feature)

Features:Thin-section; Flanged (optional feature); Snap Ring / Snap Ring Groove (optional feature)

Operating Temperature:-65 to 250 F (-54 to 121 C)

Feature:

1.Thin section metric range from 10mm to 95mm bore, OD to 1300mm;
2.Flanged and unflanged executions;
3.Open, shielded and sealed bearings;
4.ISO class P0, P6 & P5;
5.Carbon chrome or stainless steel;
6.ISO 9001 approved.

Ralated Models:

Here are some recommended product models:
KA 020XP0,
KA 025XP0,
KA 030XP0,
KA 035XP0,
KA 040XP0,
KA 042XP0,
KA 045XP0,
KA 047XP0,
KA 050XP0,
KA 055XP0,
KA 060XP0,
KA 065XP0,
KA 070XP0,
KA 075XP0,
KA 080XP0,
KA 090XP0,
KA 100XP0,
KA 120XP0,
KA 140XP0,
KA 160XP0,
KA 180XP0,
KA 200XP0,
KA 250XP0,
KA 300XP0,
KA 350XP0,
KA 400XP0

the above models, are only show some products, only for your reference. If you are interested in other models, please send inquiry to us. Sincerely at your service.
